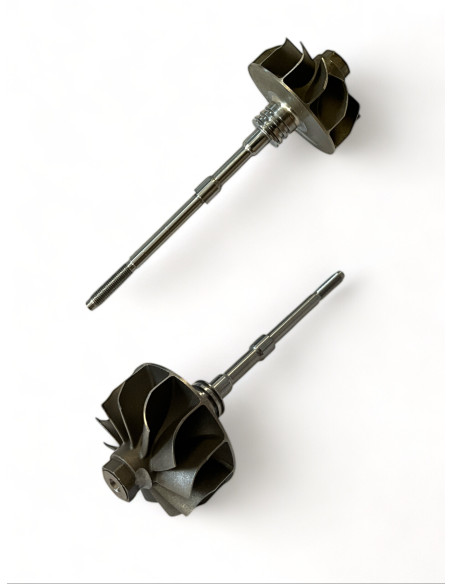

Shaft and wheel SW-G150
Shaft and wheel SW-G150

Shaft and wheel SW-G150

SW-G150
New
In Stock (16 Items)
€44.04
Tax included

Shaft and wheel SW-G150 for turbos 821784-0001, 821784-0002, 821784-0004, 821785-0002, 821785-0005, 821785-0006, 822751-0002, 822751-0003, 822751-0005, 830323-0003.



SW-G150 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G150

SW-G150 - Compatibility table

Shaft and wheel SW-G150 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGTD1449VKZ821784-0001--
GarrettGTD1449VKZ821784-0002--
GarrettGTD1449VKZ821784-0004--
GarrettGTD1449VKZ821785-000255258240
GarrettGTD1449VKZ821785-000555282309
GarrettGTD1449VKZ821785-000646336044
GarrettGTD1449VKZ822751-000246336044
GarrettGTD1449VKZ822751-000346336044
GarrettGTD1449VKZ822751-000546336044
GarrettGTD1446VZM830323-000304L253014CV550
GarrettGTD1446VZ830323-000604L253014C-V400, 04L253014CV400
GarrettGTD1449VKZ832642-0002--
GarrettGTD1449VKZ832642-0003--
GarrettGTD1449VKZ832642-0005--
GarrettGTD1449VKZ832642-0006--
GarrettGT14834009-0001--
GarrettGTD1446MVZ845888-0001845888-0001
GarrettGTD1449VKZ857039-0001--
GarrettGTD1446VZM873767-000104L253014CV550
GarrettGTD1446VZM873970-0001--

SW-G150 - Part Properties

Blades (Shaft blades count): 11

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 39.1

Exducer Diameter B (Exducer Diameter B): 35.9

Tip Height C (Tip Height C): 8.1

Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0

Shaft Length (mm) (Shaft Length (mm)): 80.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Model (Model): GT12

821784-0001, 821784-0002, 821784-0004, 55258240, 821785-0002, 55282309, 821785-0005, 46336044, 821785-0006, 46336044, 822751-0002, 46336044, 822751-0003, 46336044, 822751-0005, 04L253014CV550, 830323-0003, 04L253014C-V400, 04L253014CV400, 830323-0006, 832642-0002, 832642-0003, 832642-0005, 832642-0006, 834009-0001, 845888-0001, 857039-0001, 04L253014CV550, 873767-0001, 873970-0001
