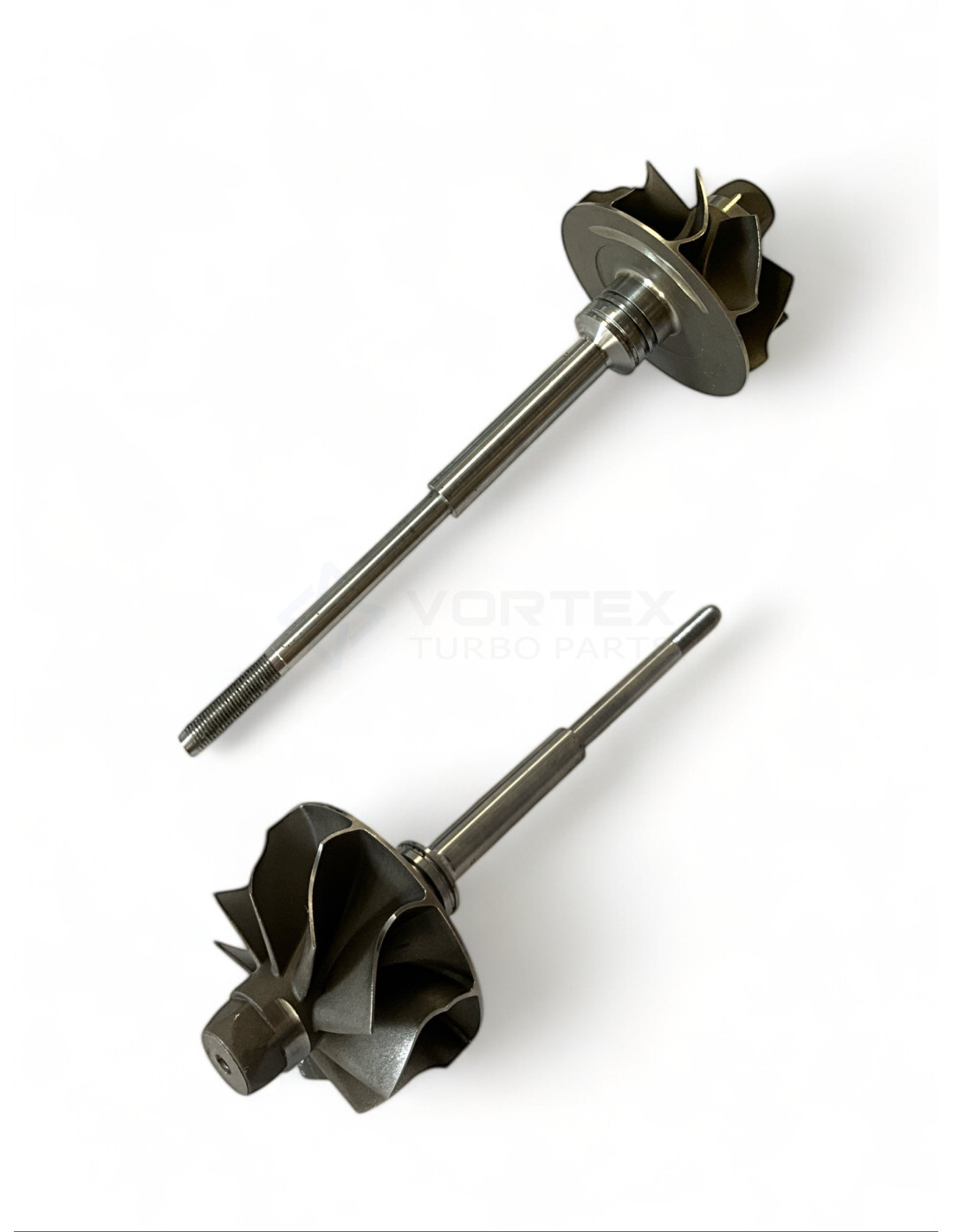

Shaft and wheel SW-B020
5303-120-8849, SW-B020
Shaft and wheel SW-B020 for turbos 10009700198(BV43), 10009700216(BV43), 10009700233(BV43), 10009700290(BV43), 10009700291(BV43), 10009700339(BV43), 10009700357(BV43), 10009700374(BV43), 53039700226, 53039700299.
SW-B020 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-B020
SW-B020 - Alternative numbers
BWO (BorgWarner original part number): 5303-120-8849
SW-B020 - Compatibility table
| Shaft and wheel SW-B020 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| BorgWarner | BV43-R2S | 10009700198(BV43) | -- |
| BorgWarner | BV43-R2S | 10009700216(BV43) | -- |
| BorgWarner | BV43-R2S | 10009700233(BV43) | -- |
| BorgWarner | BV43-R2S | 10009700290(BV43) | -- |
| BorgWarner | BV43-R2S | 10009700291(BV43) | -- |
| BorgWarner | BV43-R2S | 10009700339(BV43) | -- |
| BorgWarner | BV43-R2S | 10009700357(BV43) | -- |
| BorgWarner | BV43-R2S | 10009700374(BV43) | -- |
| BorgWarner | BV43 | 53039700226 | -- |
| BorgWarner | K03 | 53039700299 | -- |
| BorgWarner | BV43 | 53039700324 | 04L253010L |
| BorgWarner | BV43 | 53039700353 | -- |
| BorgWarner | BV43 | 53039700359 | 04L253010N |
| BorgWarner | BV43 | 53039700385 | 04L253010S |
| BorgWarner | BV43 | 53039700411 | -- |
| BorgWarner | K03 | 53039700413 | 31411485 |
| BorgWarner | BV43 | 53039700414 | 04L253056C |
| BorgWarner | BV43 | 53039700432 | -- |
| BorgWarner | BV43 | 53039700433 | -- |
| BorgWarner | BV43 | 53039700435 | -- |
| BorgWarner | BV43 | 53039700441 | 04L253056E |
| BorgWarner | BV43 | 53039700443 | -- |
| BorgWarner | K03 | 53039700463 | -- |
| BorgWarner | K03 | 53039700474 | -- |
| BorgWarner | BV43 | 53039700475 | 04L253056F |
| BorgWarner | BV43 | 53039700476 | 04L253056H |
| BorgWarner | BV43 | 53039700477 | -- |
| BorgWarner | BV43 | 53039700478 | -- |
| BorgWarner | BV43 | 53039700490 | -- |
| BorgWarner | BV43 | 53039700491 | -- |
| BorgWarner | BV43 | 53039700492 | -- |
| BorgWarner | BV43 | 53039700521 | -- |
| BorgWarner | BV43-R2S | 53039700525(BV43) | -- |
| BorgWarner | BV43 | 53039700542 | 04L253056L |
| BorgWarner | BV43 | 53039700543 | -- |
| BorgWarner | BV43 | 53039700545 | -- |
| BorgWarner | K03 | 53039700546 | -- |
| BorgWarner | BV43-R2S | 53039700569(BV43) | -- |
| BorgWarner | BV43-R2S | 53039700598(BV43) | -- |
| BorgWarner | R2S-BV43 | 53039700604(BV43) | -- |
| BorgWarner | BV43 | 53039700620 | -- |
| BorgWarner | BV43 | 53039700621 | -- |
| BorgWarner | BV43 | 53039700655 | -- |
| BorgWarner | BV43-R2S | 53039700692(BV43) | -- |
| BorgWarner | BV43-R2S | 53039700770(BV43) | -- |
| BorgWarner | BV43 | 53039707220 | -- |
SW-B020 - Part Properties
Blades (Shaft blades count): 9
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 42.6
Exducer Diameter B (Exducer Diameter B): 37.9
Tip Height C (Tip Height C): 6.4
Journal Bearing Diameter D (Journal Bearing Diameter D): 7.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.6
Shaft Length (mm) (Shaft Length (mm)): 98.0
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Twin
Model (Model): BV43
10009700198(BV43), 10009700216(BV43), 10009700233(BV43), 10009700290(BV43), 10009700291(BV43), 10009700339(BV43), 10009700357(BV43), 10009700374(BV43), 53039700226, 53039700299, 04L253010L, 53039700324, 53039700353, 04L253010N, 53039700359, 04L253010S, 53039700385, 53039700411, 31411485, 53039700413, 04L253056C, 53039700414, 53039700432, 53039700433, 53039700435, 04L253056E, 53039700441, 53039700443, 53039700463, 53039700474, 04L253056F, 53039700475, 04L253056H, 53039700476, 53039700477, 53039700478, 53039700490, 53039700491, 53039700492, 53039700521, 53039700525(BV43), 04L253056L, 53039700542, 53039700543, 53039700545, 53039700546, 53039700569(BV43), 53039700598(BV43), 53039700604(BV43), 53039700620, 53039700621, 53039700655, 53039700692(BV43), 53039700770(BV43), 53039707220
Data updated: 2025-08-27 16:50:24
