Shaft and wheel SW-B021R
SW-B021R
New
Last items in stock
(2 Items)
€53.48
Tax included

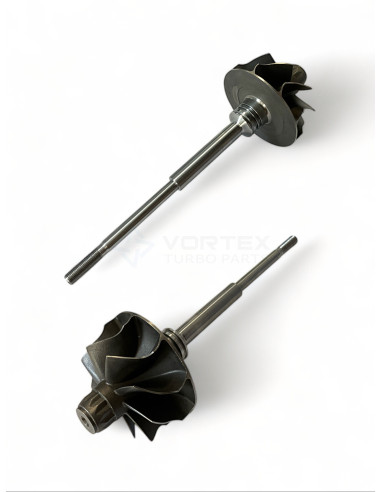

Shaft and wheel SW-B021R for turbos 53039700265, 53039700394, 53039700634.
SW-B021R - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-B021R
SW-B021R - Compatibility table
| Shaft and wheel SW-B021R - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| BorgWarner | BV43 | 53039700265 | 9800923580, 9804265280 |
| BorgWarner | BV43 | 53039700394 | -- |
| BorgWarner | BV43 | 53039700634 | -- |

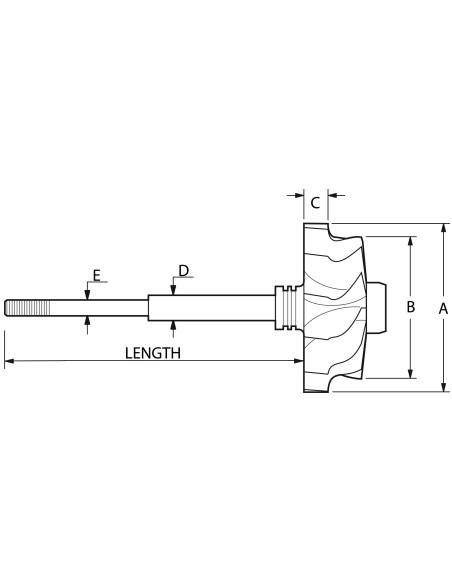

SW-B021R - Part Properties
Blades (Shaft blades count): 9
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 42.6
Exducer Diameter B (Exducer Diameter B): 37.8
Tip Height C (Tip Height C): 6.4
Journal Bearing Diameter D (Journal Bearing Diameter D): 7.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.6
Shaft Length (mm) (Shaft Length (mm)): 98.0
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Twin
Rotation (Rotation): Reverse
Model (Model): BV43
53039700265, 9800923580, 9804265280, 53039700394, 53039700634
