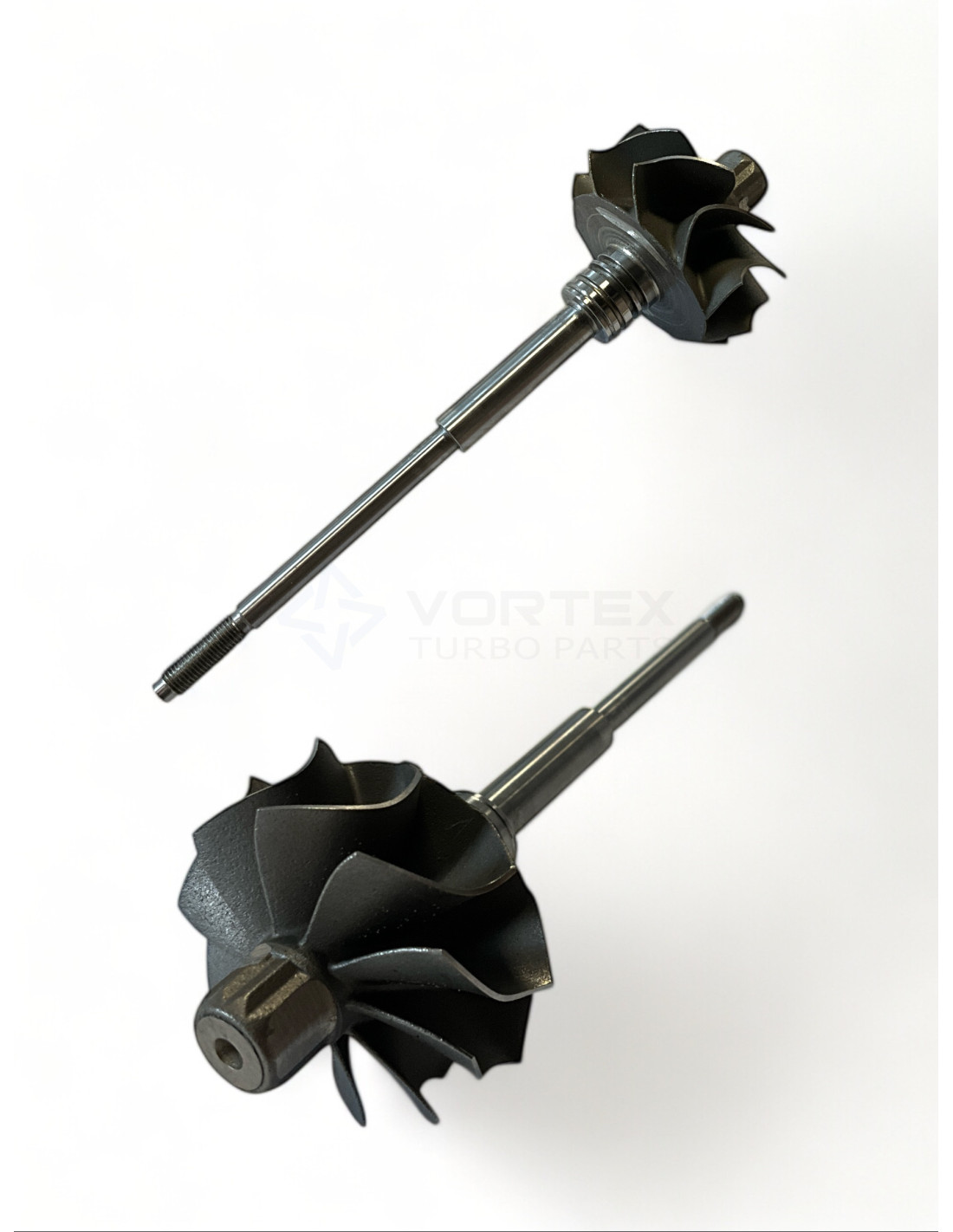

Shaft and wheel SW-CO003R
SW-CO003R
New
In Stock
(5 Items)
€50.34
Tax included
Shaft and wheel SW-CO003R for turbos 06K145654F, 06K145654G, 06K145654K, 06K145654L.
SW-CO003R - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-CO003R
SW-CO003R - Compatibility table
| Shaft and wheel SW-CO003R - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Continental | GTDI12V | 06K145654F | -- |
| Continental | GTDI12V | 06K145654G | -- |
| Continental | GTDI12V | 06K145654K | -- |
| Continental | GTDI12V | 06K145654L | -- |

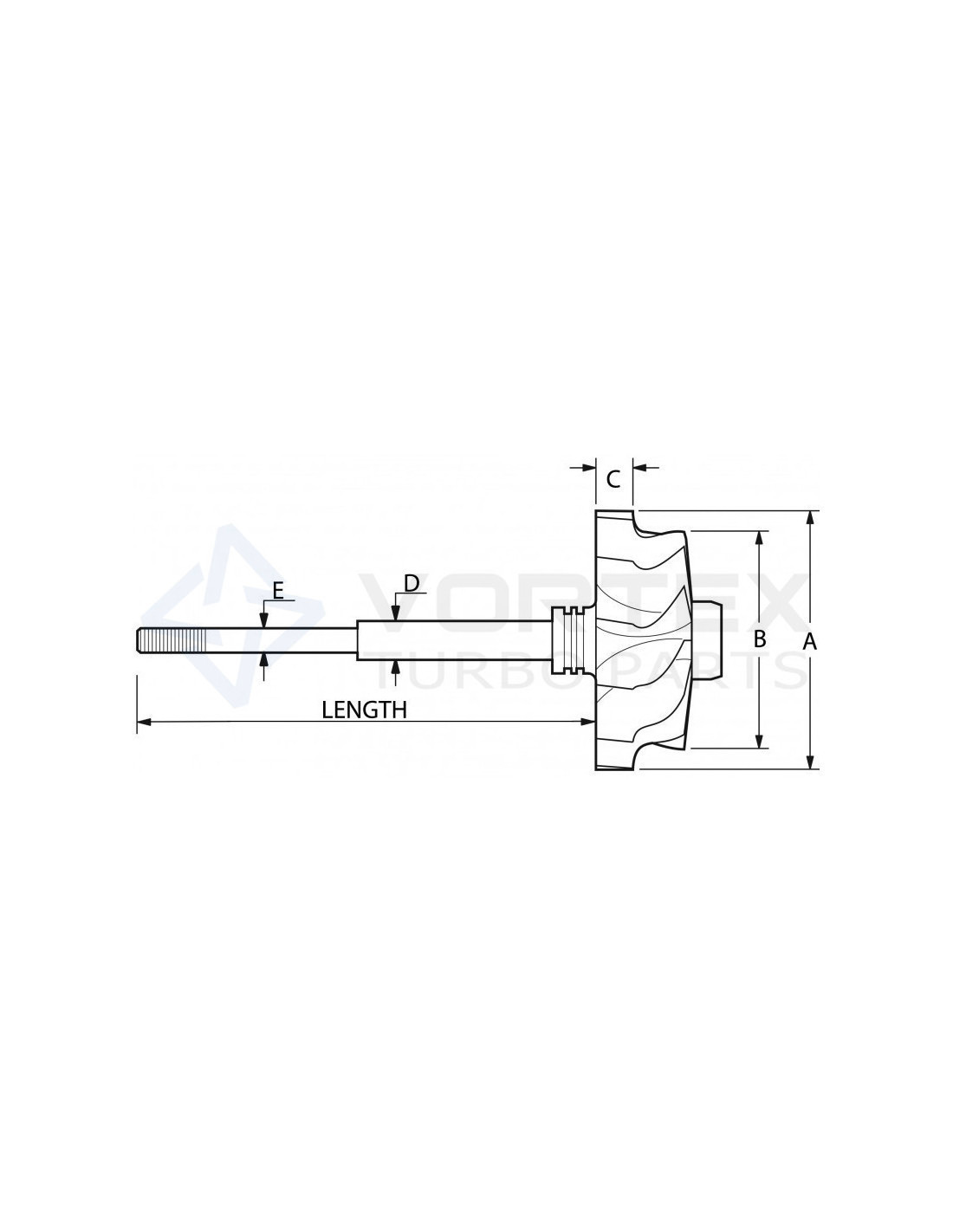

SW-CO003R - Part Properties
Blades (Shaft blades count): 10
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 39.3
Exducer Diameter B (Exducer Diameter B): 35.0
Tip Height C (Tip Height C): 5.2
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.5
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.2
Shaft Length (mm) (Shaft Length (mm)): 87.0
Back (Back): Open
Piston Ring Type (Piston Ring Type): Twin
Rotation (Rotation): Reverse
Model (Model): GTDI12V
06K145654F, 06K145654G, 06K145654K, 06K145654L
Data updated: 2024-06-03 17:04:49
