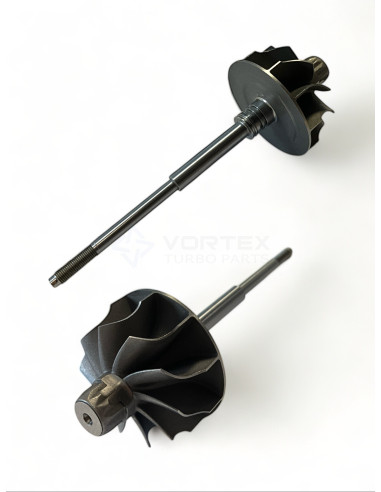

Shaft and wheel SW-B033R
SW-B033R
New
In Stock
(5 Items)
€50.34
Tax included
Shaft and wheel SW-B033R for turbos 16409700001, 16409700002, 16409700003, 16409700006, 16409700015.
SW-B033R - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-B033R
SW-B033R - Compatibility table
| Shaft and wheel SW-B033R - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| BorgWarner | B01 | 16409700001 | -- |
| BorgWarner | B01 | 16409700002 | -- |
| BorgWarner | B01 | 16409700003 | -- |
| BorgWarner | B01 | 16409700006 | -- |
| BorgWarner | B01 | 16409700015 | -- |

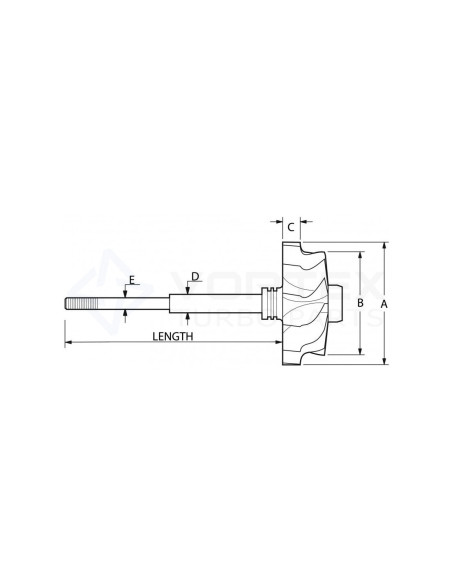

SW-B033R - Part Properties
Blades (Shaft blades count): 10
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 40.0
Exducer Diameter B (Exducer Diameter B): 34.2
Tip Height C (Tip Height C): 6.8
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0
Shaft Length (mm) (Shaft Length (mm)): 84.5
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Twin
Rotation (Rotation): Reverse
Model (Model): B01
16409700006, 16409700003, 16409700001, 1640 970 0001, 16409700002, 1640 970 0003, 1640 970 0006, 16409700015
Data updated: 2025-02-18 17:05:58
