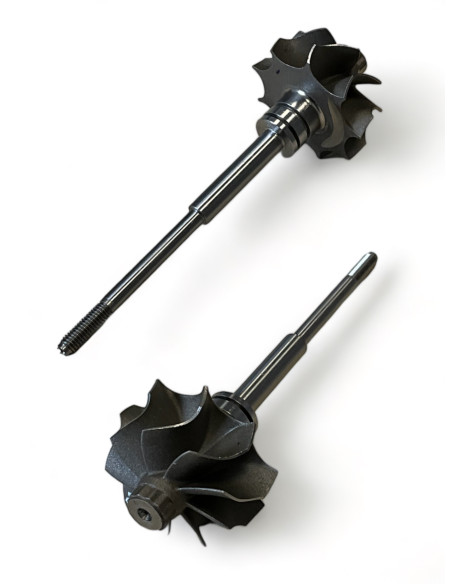

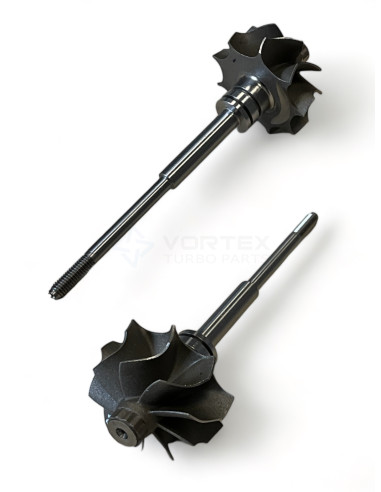

Shaft and wheel SW-M029R
Shaft and wheel SW-M029R
Shaft and wheel SW-M029R
Shaft and wheel SW-M029R

Shaft and wheel SW-M029R

SW-M029R
New
In Stock (13 Items)
€42.47
Tax included

Shaft and wheel SW-M029R for turbos 49130-00100, 49130-00101, 49130-00102, 49130-00103, 49130-00105, 49130-00106, 49130-00107, 49130-00108, 49130-00110, 49130-00112.



SW-M029R - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-M029R

SW-M029R - Compatibility table

Shaft and wheel SW-M029R - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
MitsubishiTD02L49130-00100--
MitsubishiTD02L49130-00101--
MitsubishiTD02L49130-00102--
MitsubishiTD02L49130-00103--
MitsubishiTD02L49130-00105--
MitsubishiTD02L49130-00106--
MitsubishiTD02L49130-00107--
MitsubishiTD02L49130-00108--
MitsubishiTD02L49130-00110--
MitsubishiTD02L49130-00112--
MitsubishiTD02L49130-00114--
MitsubishiTD02L49130-00120--
MitsubishiTD02L49130-00121--
MitsubishiTD02L49130-02500--

SW-M029R - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 33.9

Exducer Diameter B (Exducer Diameter B): 28.9

Tip Height C (Tip Height C): 5.8

Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0

Shaft Length (mm) (Shaft Length (mm)): 83.2

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Rotation (Rotation): Reverse

Model (Model): TD02/03

49130-00100, 49130-00101, 49130-00102, 49130-00103, 49130-00105, 49130-00106, 49130-00107, 49130-00108, 49130-00110, 49130-00112, 49130-00114, 49130-00120, 49130-00121, 49130-02500

Data updated: 2024-04-19 12:58:35
