Shaft and wheel SW-G178
Shaft and wheel SW-G178
Shaft and wheel SW-G178
Shaft and wheel SW-G178

Shaft and wheel SW-G178

SW-G178
New
Out-of-Stock
€37.12
Tax included

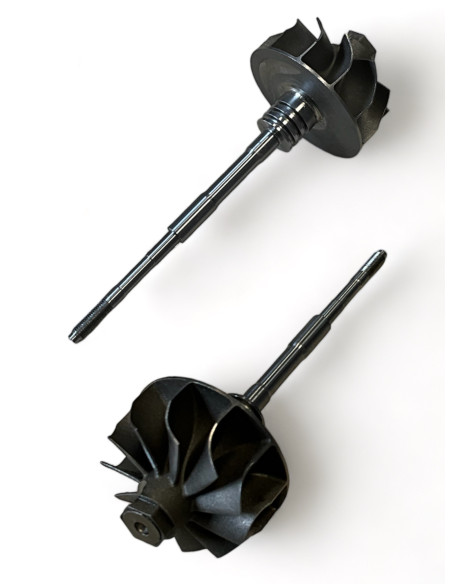

Shaft and wheel SW-G178 for turbos 845275-0001, 845275-0002, 846101-0004, 846101-0006, 853603-0001, 886027-0001, 886027-0002.




SW-G178 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G178

SW-G178 - Compatibility table

Shaft and wheel SW-G178 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGTD1244VZ845275-0001--
GarrettGTD1244VZ845275-0002--
GarrettGTD1241VZ846101-0004--
GarrettGTD1241VZ846101-0006--
GarrettGTD1244VZ853603-0001--
GarrettGTD1241VZ886027-0001--
GarrettGTD1241VZ886027-0002--

SW-G178 - Part Properties

Blades (Shaft blades count): 11

Type (Shaft & Wheel Type): Z Bearings

Inducer Diameter A (Inducer Diameter A): 36.0

Exducer Diameter B (Exducer Diameter B): 32.7

Tip Height C (Tip Height C): 6.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 5.2

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 3.6

Shaft Length (mm) (Shaft Length (mm)): 79.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Model (Model): GT12

845275-0001, 845275-0002, 846101-0004, 846101-0006, 853603-0001, 886027-0001, 886027-0002

Data updated: 2025-02-26 11:42:33
