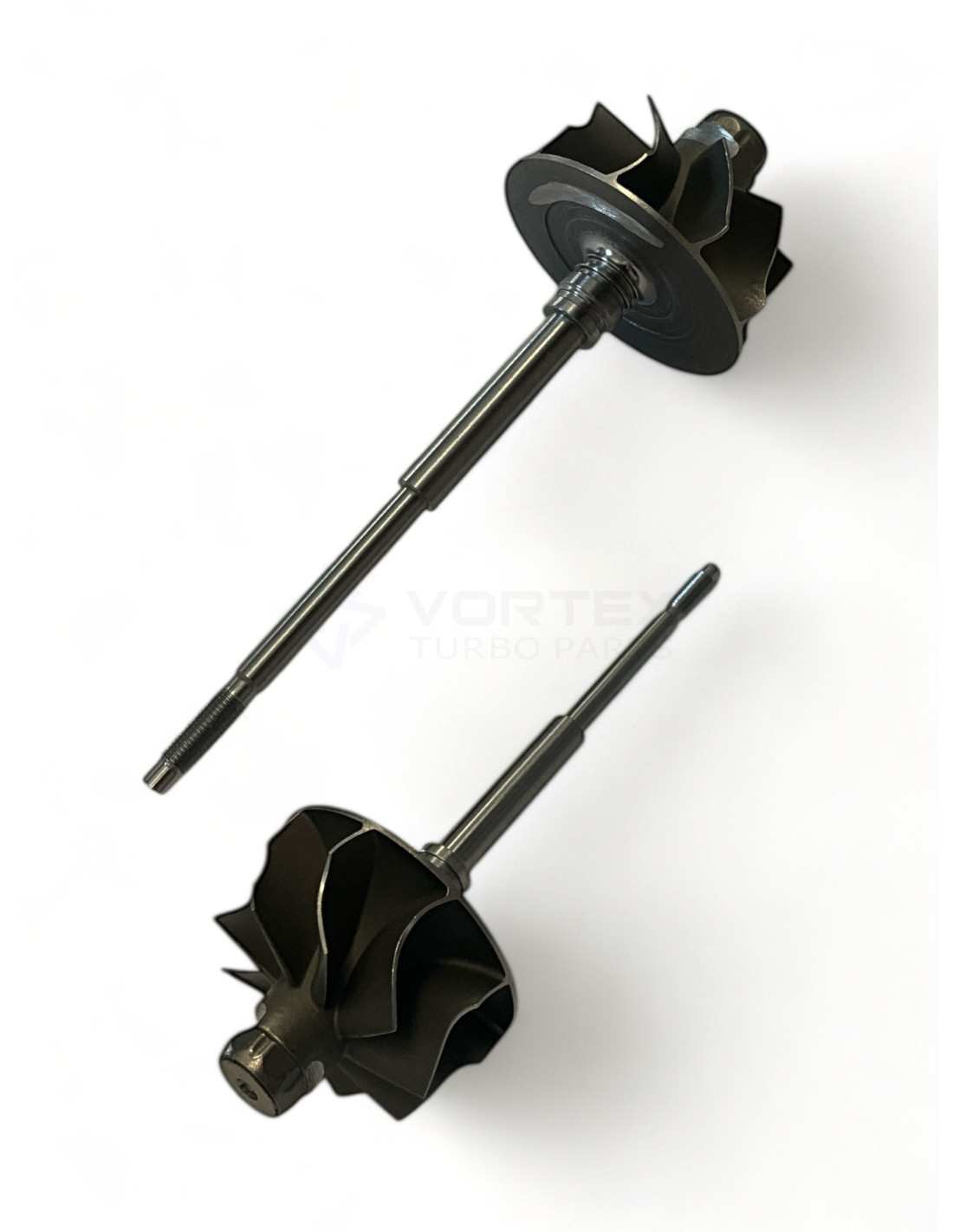

Shaft and wheel SW-B014
Shaft and wheel SW-B014

Shaft and wheel SW-B014

SW-B014
New
In Stock (32 Items)
€31.46
Tax included

5440 120 5000, SW-B014

Shaft and wheel SW-B014 for turbos 54409700001, 54409700002, 54409700003, 54409700005, 54409700006, 54409700007, 54409700009, 54409700010, 54409700013, 54409700019.



SW-B014 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-B014

SW-B014 - Alternative numbers

BWO (BorgWarner original part number): 5440 120 5000

SW-B014 - Compatibility table

Shaft and wheel SW-B014 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
BorgWarnerBV40-1874KBB377.18BAXXK544097000017808165
BorgWarnerBV40-1874KCB340.18AVAXC5440970000203L253019P
BorgWarnerBV40-1874KCB340.18AVAXC5440970000303L253019R
BorgWarnerBV405440970000503L253056E
BorgWarnerBV40-1874KBB377.18BAXXK544097000067808165
BorgWarnerBV40-1874KCB340.18AVAXC5440970000703L253056G
BorgWarnerBV40-1874KBB377.18BAXXK544097000097808165
BorgWarnerBV40544097000108508091
BorgWarnerBV40544097000138508091
BorgWarnerBV40544097000198508091
BorgWarnerBV405440970002003L253056Q
BorgWarnerBV40-1874KCB340.18AVAXC5440970002103L253056T
BorgWarnerBV40-1874KCB340.18AVAXC5440970002203L253056S
BorgWarnerBV405440970002611658508091, 11658510943, 8508091, 8510943
BorgWarnerBV405440970003503L253010J
BorgWarnerBV40-1874KCB340.18AVAXC5440970003603L253010G

SW-B014 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 40.0

Exducer Diameter B (Exducer Diameter B): 35.5

Tip Height C (Tip Height C): 6.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.1

Shaft Length (mm) (Shaft Length (mm)): 83.5

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Model (Model): BV40

54409700036, 54409700035, 54409700026, 54409700022, 54409700021, 54409700020, 54409700019, 54409700013, 54409700010, 54409700009, 54409700007, 54409700006, 54409700005, 54409700003, 54409700002, 54409700001, 5440 970 0001, 7808165, 03L253019P, 5440 970 0002, 03L253019R, 5440 970 0003, 03L253056E, 5440 970 0005, 5440 970 0006, 7808165, 03L253056G, 5440 970 0007, 5440 970 0009, 7808165, 5440 970 0010, 8508091, 5440 970 0013, 8508091, 5440 970 0019, 8508091, 03L253056Q, 5440 970 0020, 03L253056T, 5440 970 0021, 03L253056S, 5440 970 0022, 11658508091, 11658510943, 5440 970 0026, 8508091, 8510943, 03L253010J, 5440 970 0035, 03L253010G, 5440 970 0036
