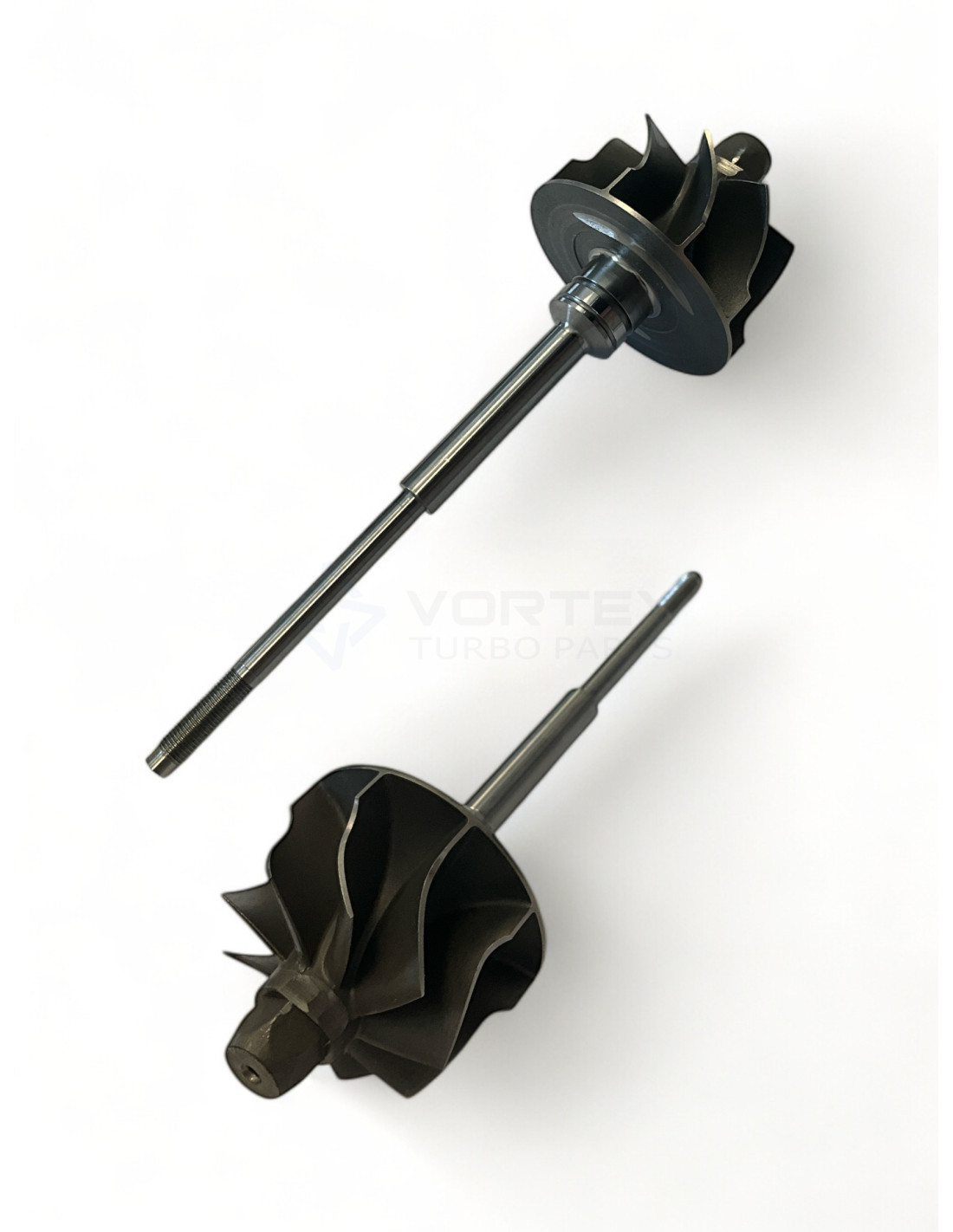

Shaft and wheel SW-B015
Shaft and wheel SW-B015

Shaft and wheel SW-B015

SW-B015
New
Out-of-Stock
€31.46
Tax included

Shaft and wheel SW-B015 for turbos 53039700097, 53039700109, 53039700122, 53039700126, 53039700127, 53039700129, 53039700131, 53039700137, 53039700138, 53039700143.




SW-B015 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-B015

SW-B015 - Compatibility table

Shaft and wheel SW-B015 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
BorgWarnerBV43-2074DCBAA419.18BVAXK53039700097M28200-4A421
BorgWarnerBV43-1880DXF419.18BXAXC5303970010903G145702H
BorgWarnerBV43-2074DCBAA419.18BVAXK5303970012228200-4A470, 282004A470
BorgWarnerBV43-2074DCBAA419.18BVAXK5303970012628200-4A450
BorgWarnerBV43-2074DCBAA419.18BVAXK5303970012728200-4A480
BorgWarnerBV43-1880KCF419.18BVAXC5303970012903L253019C, 03L253019M
BorgWarnerBV43-1880KCF419.18BVAXC5303970013103L145702, 03L145702J
BorgWarnerBV43-1880KCF419.18BVAXC5303970013703L253010D, 03L253016G, 03L253019K
BorgWarnerBV43-1880KCF419.18BVAXC5303970013803L145701A, 03L145702E
BorgWarnerBV43-2074DCBAA419.18BVAXK53039700143--
BorgWarnerBV43-2074DCBAA419.18BVAXC5303970014428200-4A470, 282004A470
BorgWarnerBV43-2074DCBAA419.18BVAXC5303970014528200-4A480
BorgWarnerBV43-1880KCF419.18BVAXC5303970018903L145701E
BorgWarnerBV43-1880KCF419.18BVAXC5303970020703L253056C
BorgWarnerBV43-2070DCBAA380.18KVAXK530397070016400901680, 6400902680

SW-B015 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 43.0

Exducer Diameter B (Exducer Diameter B): 38.0

Tip Height C (Tip Height C): 7.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.6

Shaft Length (mm) (Shaft Length (mm)): 98.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Single

Model (Model): BV43

53039707001, 53039700207, 53039700189, 53039700145, 53039700144, 53039700143, 53039700138, 53039700137, 53039700131, 53039700129, 53039700127, 53039700126, 53039700122, 53039700109, 53039700097, 5303 970 0097, M28200-4A421, 03G145702H, 5303 970 0109, 28200-4A470, 282004A470, 5303 970 0122, 28200-4A450, 5303 970 0126, 28200-4A480, 5303 970 0127, 03L253019C, 03L253019M, 5303 970 0129, 03L145702, 03L145702J, 5303 970 0131, 03L253010D, 03L253016G, 03L253019K, 5303 970 0137, 03L145701A, 03L145702E, 5303 970 0138, 5303 970 0143, 28200-4A470, 282004A470, 5303 970 0144, 28200-4A480, 5303 970 0145, 03L145701E, 5303 970 0189, 03L253056C, 5303 970 0207, 5303 970 7001, 6400901680, 6400902680
