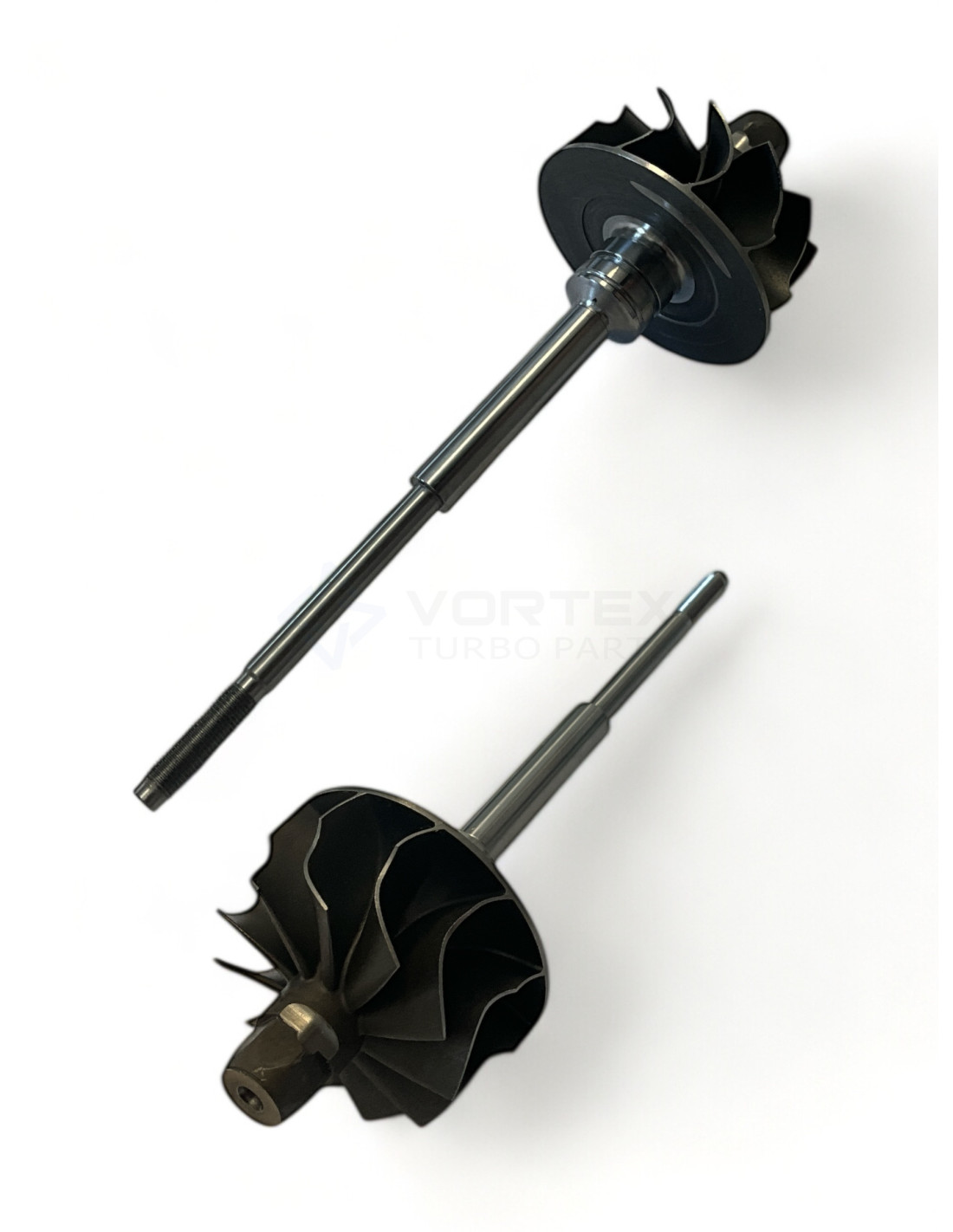

Shaft and wheel SW-B016
Shaft and wheel SW-B016

Shaft and wheel SW-B016

SW-B016
New
In Stock (38 Items)
€34.61
Tax included

Shaft and wheel SW-B016 for turbos 53039700130, 53039700132, 53039700133, 53039700139, 53039700140, 53039700152, 53039700168, 53039700169, 53039700171, 53039700190.

See below for more info.



SW-B016 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-B016

SW-B016 - Compatibility table

Shaft and wheel SW-B016 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
BorgWarnerBV43-1874KXB419.18KVAXC5303970013003L253016K, 03L253019E, 03L253019N
BorgWarnerBV43-1874KXB419.18KVAXC5303970013203L253019A, 03L253019T
BorgWarnerBV43-1874KXB419.18KVAXC5303970013303L145702A, 03L145702H
BorgWarnerBV43-1874KXB419.18KVAXC5303970013903L253010C, 03L253016F, 03L253019J
BorgWarnerBV43-1874KXB419.18KVAXC5303970014003L145701, 03L145702D
BorgWarnerBV43-1874KXB419.18KVAXC5303970015203L253016J
BorgWarnerBV43-1874KXB419.18KVAXC5303970016803L253016K, 03L253019E, 03L253019N
BorgWarnerBV43-1874KXB419.18KVAXC5303970016903L253010
BorgWarnerBV43-2070DCBAA380.18KVAXK530397001716400902480, 6400902780, A6400902480, A6400902780
BorgWarnerBV43-1874KXB419.18KVAXC5303970019003L145701D
BorgWarnerBV4353039700196--
BorgWarnerBV43-1874KXB419.18KVAXC5303970020503L253056A
BorgWarnerBV43-1874KXB419.18KVAXC5303970020603L253056B
BorgWarnerBV43-1874KXB419.18KVAXC5303970020803L253056

SW-B016 - Part Properties

Blades (Shaft blades count): 11

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 43.0

Exducer Diameter B (Exducer Diameter B): 38.0

Tip Height C (Tip Height C): 7.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.6

Shaft Length (mm) (Shaft Length (mm)): 98.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Single

Model (Model): BV43

Data updated: 2023-01-17 16:56:18
