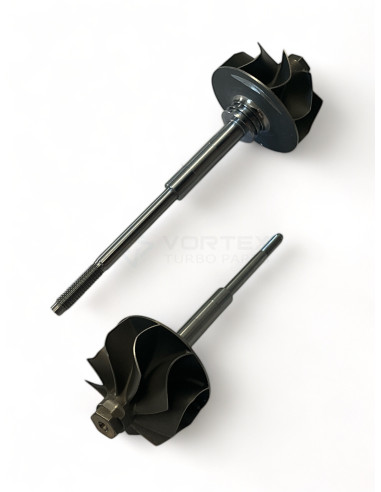

Shaft and wheel SW-G003
Shaft and wheel SW-G003

Shaft and wheel SW-G003

SW-G003
New
In Stock (35 Items)
€32.72
Tax included

Shaft and wheel SW-G003 for turbos 783413-0003, 783413-0004, 783413-0005, 786137-0001, 786137-0003, 790179-0002.



SW-G003 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G003

SW-G003 - Compatibility table

Shaft and wheel SW-G003 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGTB1749VK783413-0003--
GarrettGTB1749VK783413-0004--
GarrettGTB1749VK783413-0005--
GarrettGTB1549V786137-000155570748
GarrettGTB1549V786137-000355581063
GarrettGT1752V790179-0002--

SW-G003 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 41.0

Exducer Diameter B (Exducer Diameter B): 37.5

Tip Height C (Tip Height C): 9.2

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Model (Model): GT15-25

783413-0003, 783413-0004, 783413-0005, 55570748, 786137-0001, 55581063, 786137-0003, 790179-0002

Data updated: 2024-09-11 21:43:34
