Shaft and wheel SW-G004
Shaft and wheel SW-G004

Shaft and wheel SW-G004

SW-G004
New
Out-of-Stock
€37.75
Tax included

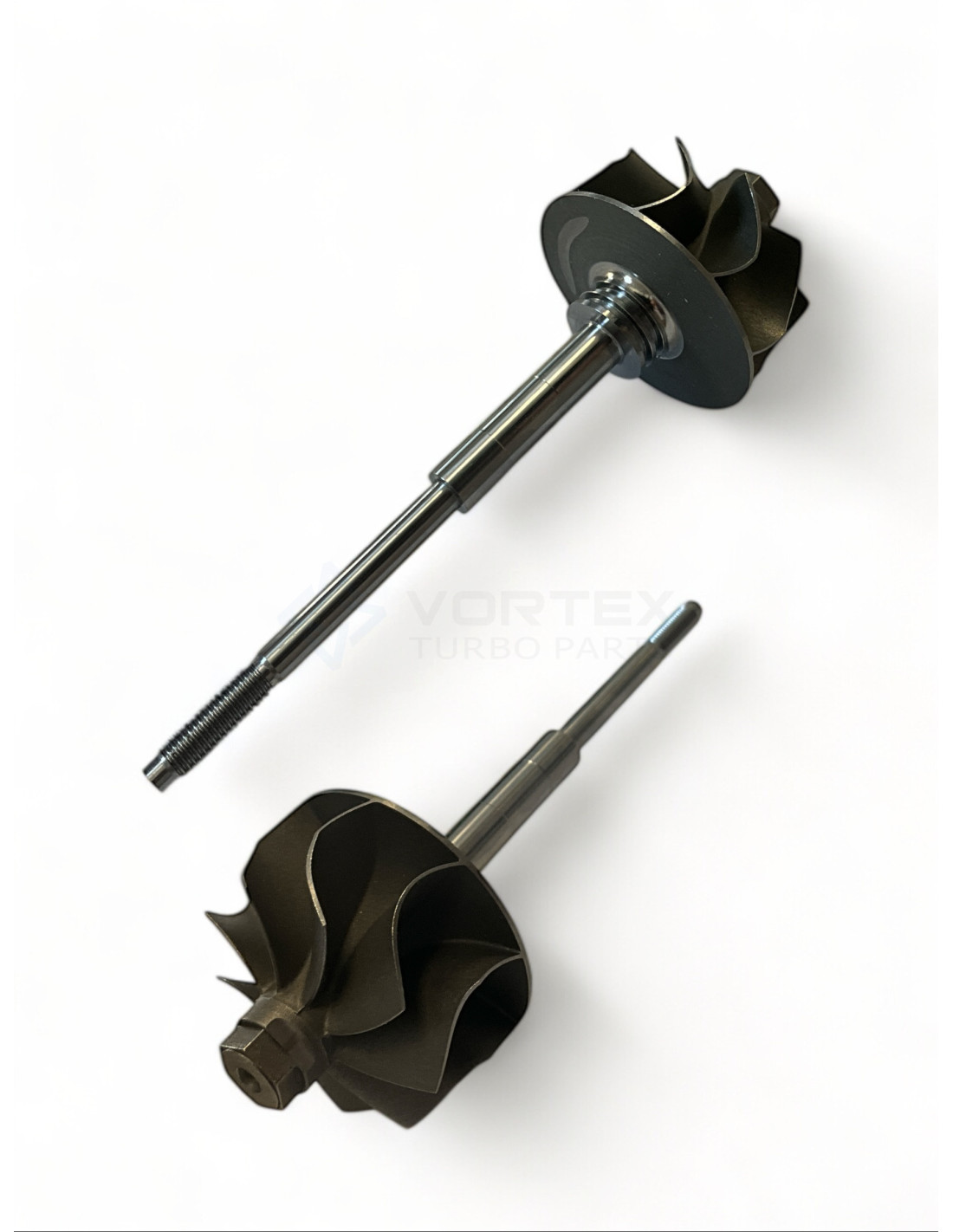

Shaft and wheel SW-G004 for turbos 750952-0001, 750952-0004, 750952-0007, 750952-0010, 750952-0013, 750952-0017, 752990-0006, 755173-0003, 755173-0004, 755173-0005.




SW-G004 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G004

SW-G004 - Compatibility table

Shaft and wheel SW-G004 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGTB1752VK750952-000177980551
GarrettGTB1752VK750952-000477980551
GarrettGTB1752VK750952-000777980551
GarrettGTB1752VK750952-001077980551
GarrettGTB1752VK750952-001377980551
GarrettGTB1752VK750952-001777980551
GarrettGTB1752V752990-0006--
GarrettGT17755173-0003--
GarrettGT17755173-0004--
GarrettGT17755173-0005--
GarrettGT17755173-0006--
GarrettGT17755862-0002--
GarrettGT17755862-0005--
GarrettGT17755862-0006--
GarrettGT1749V759688-0002A6460900480
GarrettGT1749V759688-0003A6460900480
GarrettGT1749V759688-0005A6460900480
GarrettGT1749V759688-0007A6460900480
GarrettGT1749V759688-0009A6460900480
GarrettGTB1752V760699-0002070145701N, 070145701NV204
GarrettGTB1752V760699-0003070145701N, 070145701NV210
GarrettGTB1752V760699-0004070145701N
GarrettGTB1752V760700-0003070145701Q, 070145701QV210
GarrettGTB1752V760700-0004070145701Q, 070145701QV210
GarrettGT1752V762965-000111657794022, 7794020G
GarrettGT1752V762965-000211657794022, 7794020G
GarrettGT1752V762965-00037794022G
GarrettGTB1752V762965-000711657794022, 7794020H07
GarrettGT1752V762965-000811657794022, 7794021H07
GarrettGT1752V763091-0004--
GarrettGTB1752VK764408-0001--
GarrettGTB1752VK764408-0002--
GarrettGTB1752VK764408-0003--
GarrettGTB17764409-0001--
GarrettGTB17764409-0002--
GarrettGTB17764409-0003--
GarrettGTB17765001-0001--
GarrettGT1752V765176-0001--
GarrettGT1752V765176-0002--
GarrettGT1752V765176-0003--
GarrettGT17765417-0001--
GarrettGTB1752V766398-0001--
GarrettGT1752V775159-00018200769142
GarrettGTB1749VK778400-0003--
GarrettGTB1749VK778400-0004--
GarrettGTB1749VK778400-0005--
GarrettGTB1752VLK780502-000128231-2F100, 282312F100
GarrettGT1752V782097-0001--
GarrettGT1752V783887-0001--
GarrettGTB1752V806493-0002--
GarrettGTB1749LV806850-00015801415508
GarrettGTB1749LV806850-00035801415508
GarrettGTB1749V806850-00055801894377
GarrettGTB1752VLK808031-0001808031-0001
GarrettGTB1749V808549-0001--
GarrettGTB1749V808549-0002--
GarrettGTB1749V808549-0003--
GarrettGTB1749V808549-0004--

SW-G004 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 43.1

Exducer Diameter B (Exducer Diameter B): 39.5

Tip Height C (Tip Height C): 9.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Model (Model): GT15-25

750952-0001, 77980551, 750952-0004, 77980551, 750952-0007, 77980551, 750952-0010, 77980551, 750952-0013, 77980551, 750952-0017, 77980551, 752990-0006, 755173-0003, 755173-0004, 755173-0005, 755173-0006, 755862-0002, 755862-0005, 755862-0006, 759688-0002, A6460900480, 759688-0003, A6460900480, 759688-0005, A6460900480, 759688-0007, A6460900480, 759688-0009, A6460900480, 070145701N, 070145701NV204, 760699-0002, 070145701N, 070145701NV210, 760699-0003, 070145701N, 760699-0004, 070145701Q, 070145701QV210, 760700-0003, 070145701Q, 070145701QV210, 760700-0004, 11657794022, 762965-0001, 7794020G, 11657794022, 762965-0002, 7794020G, 762965-0003, 7794022G, 11657794022, 762965-0007, 7794020H07, 11657794022, 762965-0008, 7794021H07, 763091-0004, 764408-0001, 764408-0002, 764408-0003, 764409-0001, 764409-0002, 764409-0003, 765001-0001, 765176-0001, 765176-0002, 765176-0003, 765417-0001, 766398-0001, 775159-0001, 8200769142, 778400-0003, 778400-0004, 778400-0005, 28231-2F100, 282312F100, 780502-0001, 782097-0001, 783887-0001, 806493-0002, 5801415508, 806850-0001, 5801415508, 806850-0003, 5801894377, 806850-0005, 808031-0001, 808549-0001, 808549-0002, 808549-0003, 808549-0004

Data updated: 2025-03-27 13:32:31
