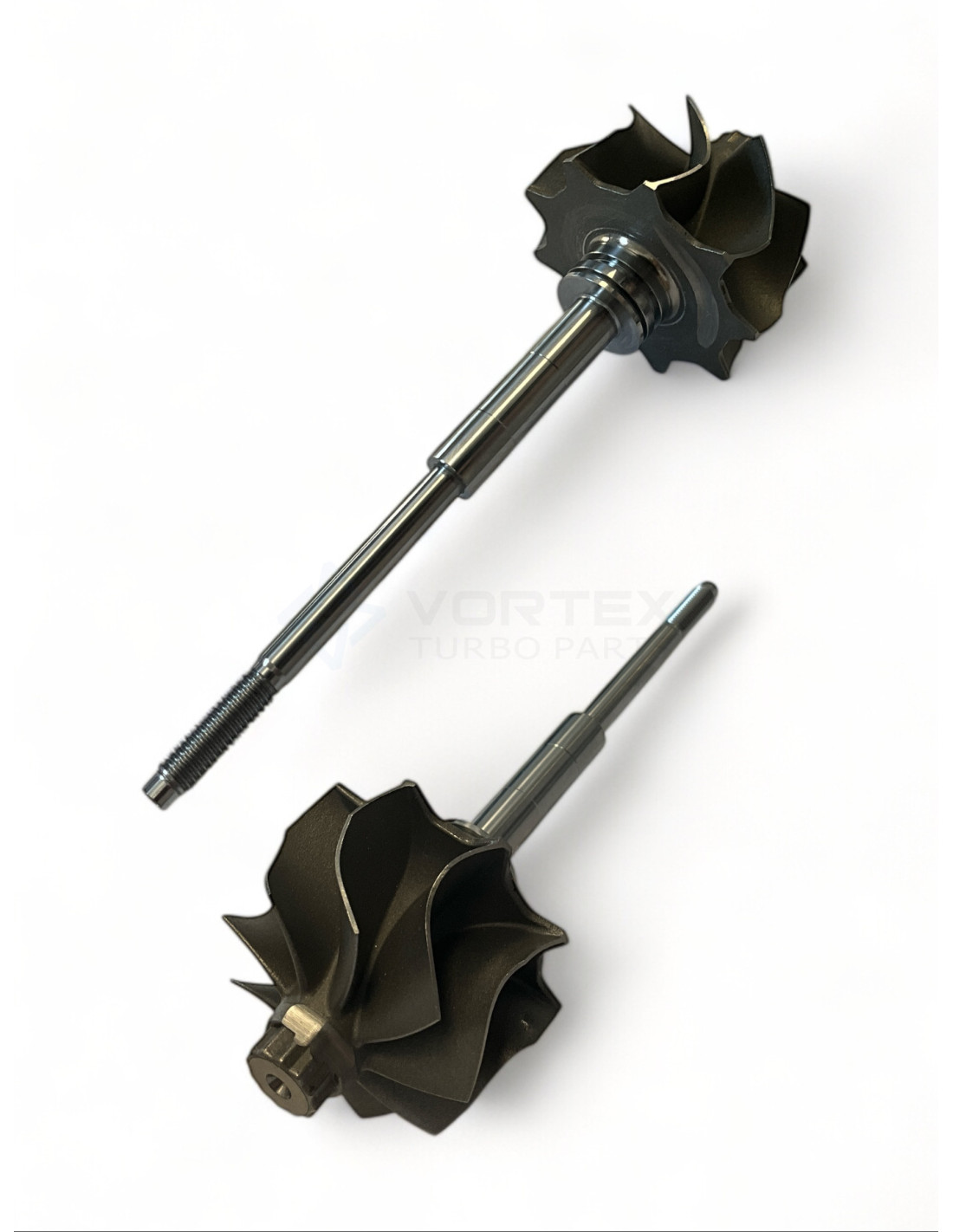

Shaft and wheel SW-G006
Shaft and wheel SW-G006

Shaft and wheel SW-G006

SW-G006
New
In Stock (17 Items)
€34.61
Tax included

1100-016-210, 1102-117-439, SW-G006, TW-070

Shaft and wheel SW-G006 for turbos 729125-0003, 729125-0008, 753707-0009, 753708-0005, 759394-0002, 761650-0001, 761650-0008, 761650-0009, 802014-0001.

See below for more info.



SW-G006 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G006

SW-G006 - Alternative numbers

Jrone (Jrone): 1100-016-210

Melett (Melett): 1102-117-439

KD (KODE): TW-070

SW-G006 - Compatibility table

Shaft and wheel SW-G006 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1752V729125-0003--
GarrettGTA1752LV729125-0008--
GarrettGTA1752LV753707-0009--
GarrettGT1752V753708-000518900-RSR-E01, 18900RSRE01
GarrettGTA1752LV759394-0002--
GarrettGTA1752LV761650-000118900-RBD-E03, 18900RBDE03
GarrettGTA1752LV761650-0008--
GarrettGTA1752LV761650-0009--
GarrettGT17802014-000118900-RMA-E01, 18900RMAE01

SW-G006 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 43.1

Exducer Diameter B (Exducer Diameter B): 38.5

Tip Height C (Tip Height C): 8.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

Data updated: 2023-01-17 16:54:57
