Shaft and wheel SW-G015
SW-G015
New
In Stock
(5 Items)
€39.95
Tax included
1100-016-390B, SW-G015, TW-205

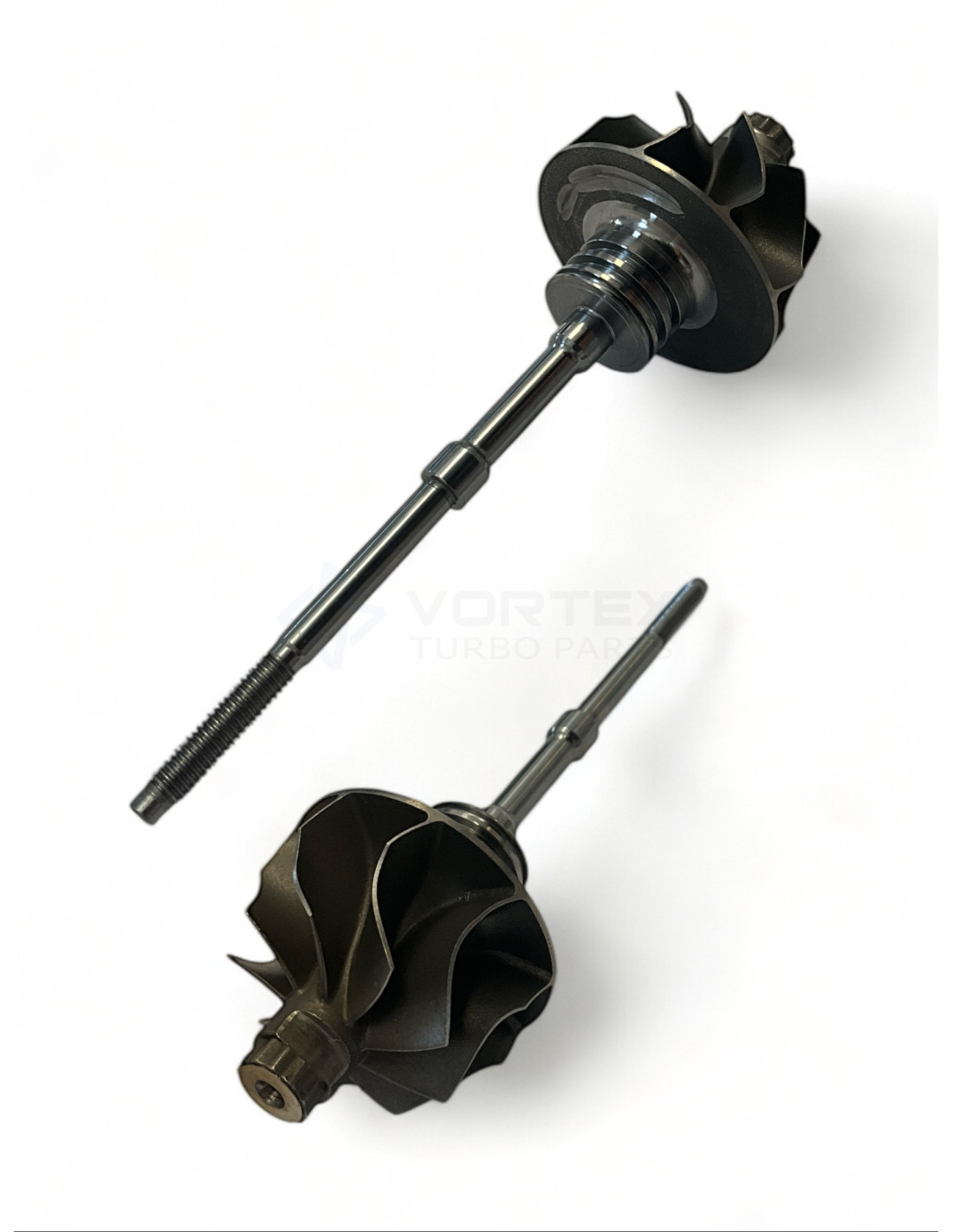

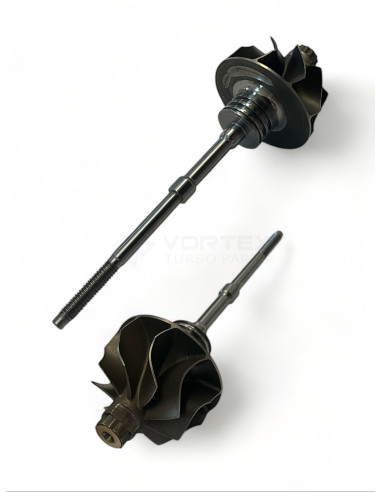

Shaft and wheel SW-G015 for turbos 789016-0001, 789016-0002.
See below for more info.
SW-G015 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-G015
SW-G015 - Alternative numbers
Jrone (Jrone): 1100-016-390B
KD (KODE): TW-205
SW-G015 - Compatibility table
| Shaft and wheel SW-G015 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | GTC1238VZ | 789016-0001 | 03P253019B |
| Garrett | GTC1238VZ | 789016-0002 | 03P253019B |
SW-G015 - Part Properties
Blades (Shaft blades count): 9
Type (Shaft & Wheel Type): Slender
Inducer Diameter A (Inducer Diameter A): 35.5
Exducer Diameter B (Exducer Diameter B): 29.2
Tip Height C (Tip Height C): 7.1
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0
Shaft Length (mm) (Shaft Length (mm)): 80.0
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Twin
Model (Model): GT12
Data updated: 2022-12-19 12:23:24
