SW-G028
New
Please login to see prices and stock

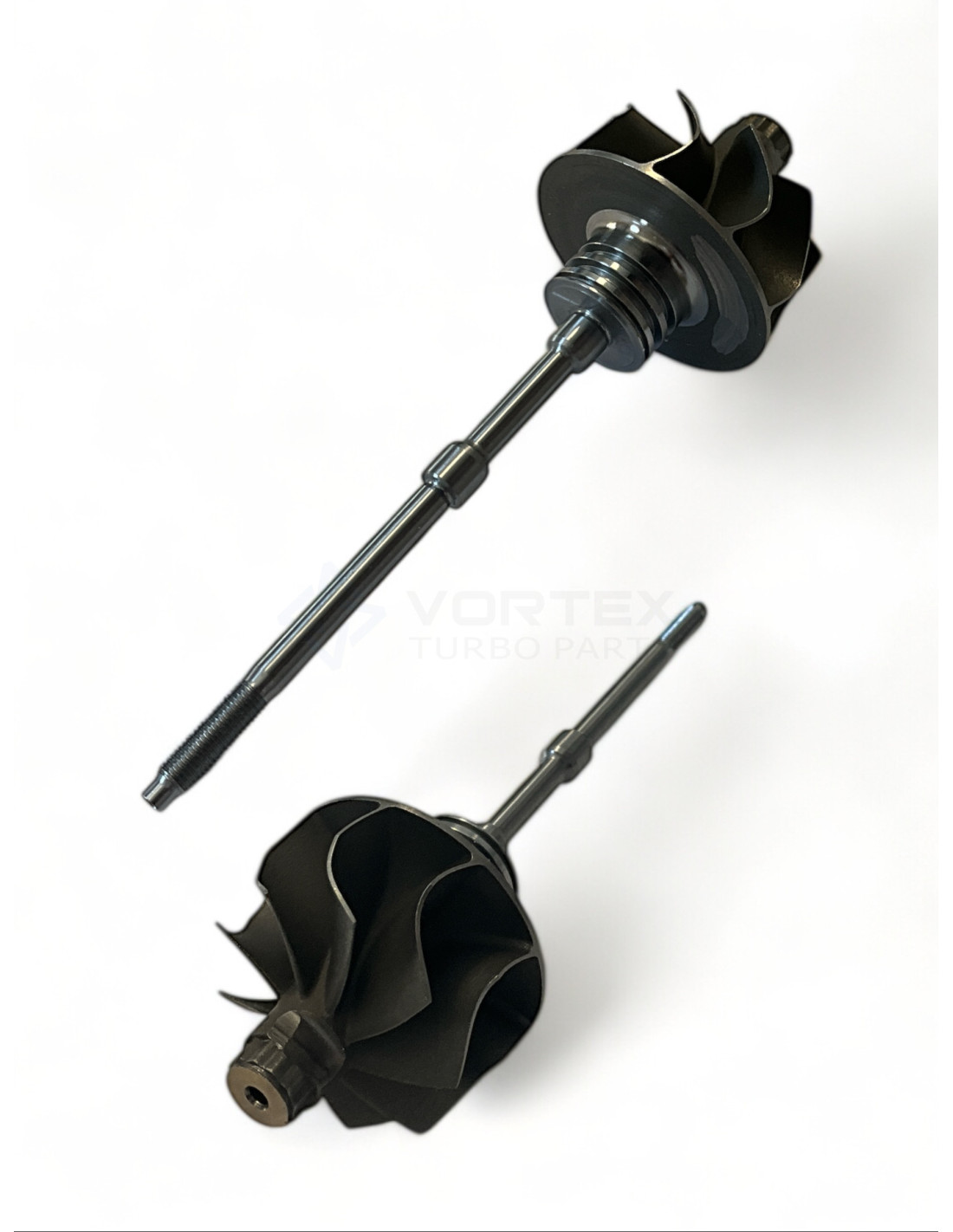

Shaft and wheel SW-G028 for turbos 775517-0001, 775517-0002, 775517-0005, 784011-0005, 794097-0002, 794097-0003, 804485-0002, 804485-0004, 804485-0005, 806291-0001.



SW-G028 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G028

SW-G028 - Compatibility table

Shaft and wheel SW-G028 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGTC1244MVZ775517-000103L253016T
GarrettGTC1244MVZ775517-000203L253016T
GarrettGTC1244MVZ775517-000503L253016T
GarrettGTC1244VZ784011-00050375P7, 968612068005, 968612068010
GarrettGTB1244VZ794097-000228201-2A850, 282012A850
GarrettGTB1244VZ794097-000328201-2A850, 282012A850
GarrettGTC14804485-0002--
GarrettGTC14804485-0004--
GarrettGTC14804485-0005--
GarrettGTC1244VZ806291-00010375P7, 968612068006, 968612068010
GarrettGTC1244VZ806291-00020375P7, 968612068006, 968612068010
GarrettGTC1244VZ806291-00030375P7, 968612068006, 968612068010
GarrettGTC1244MVKZ829886-0001--

SW-G028 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Slender

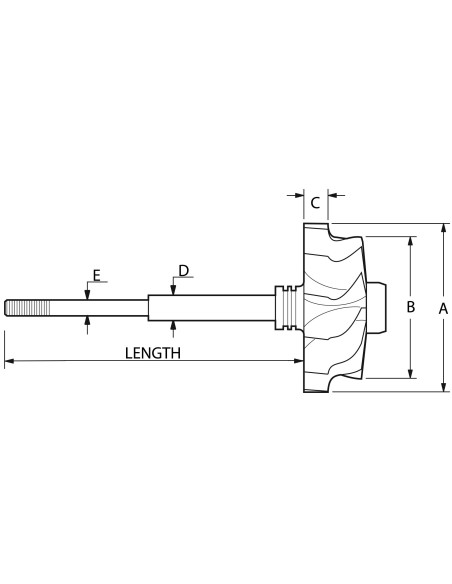

Inducer Diameter A (Inducer Diameter A): 35.5

Exducer Diameter B (Exducer Diameter B): 32.5

Tip Height C (Tip Height C): 7.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0

Shaft Length (mm) (Shaft Length (mm)): 80.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Model (Model): GT14

03L253016T, 775517-0001, 03L253016T, 775517-0002, 03L253016T, 775517-0005, 0375P7, 784011-0005, 968612068005, 968612068010, 28201-2A850, 282012A850, 794097-0002, 28201-2A850, 282012A850, 794097-0003, 804485-0002, 804485-0004, 804485-0005, 0375P7, 806291-0001, 968612068006, 968612068010, 0375P7, 806291-0002, 968612068006, 968612068010, 0375P7, 806291-0003, 968612068006, 968612068010, 829886-0001

Data updated: 2025-09-02 11:33:09
