Shaft and wheel SW-G029
SW-G029
New
In Stock
(12 Items)
€39.33
Tax included

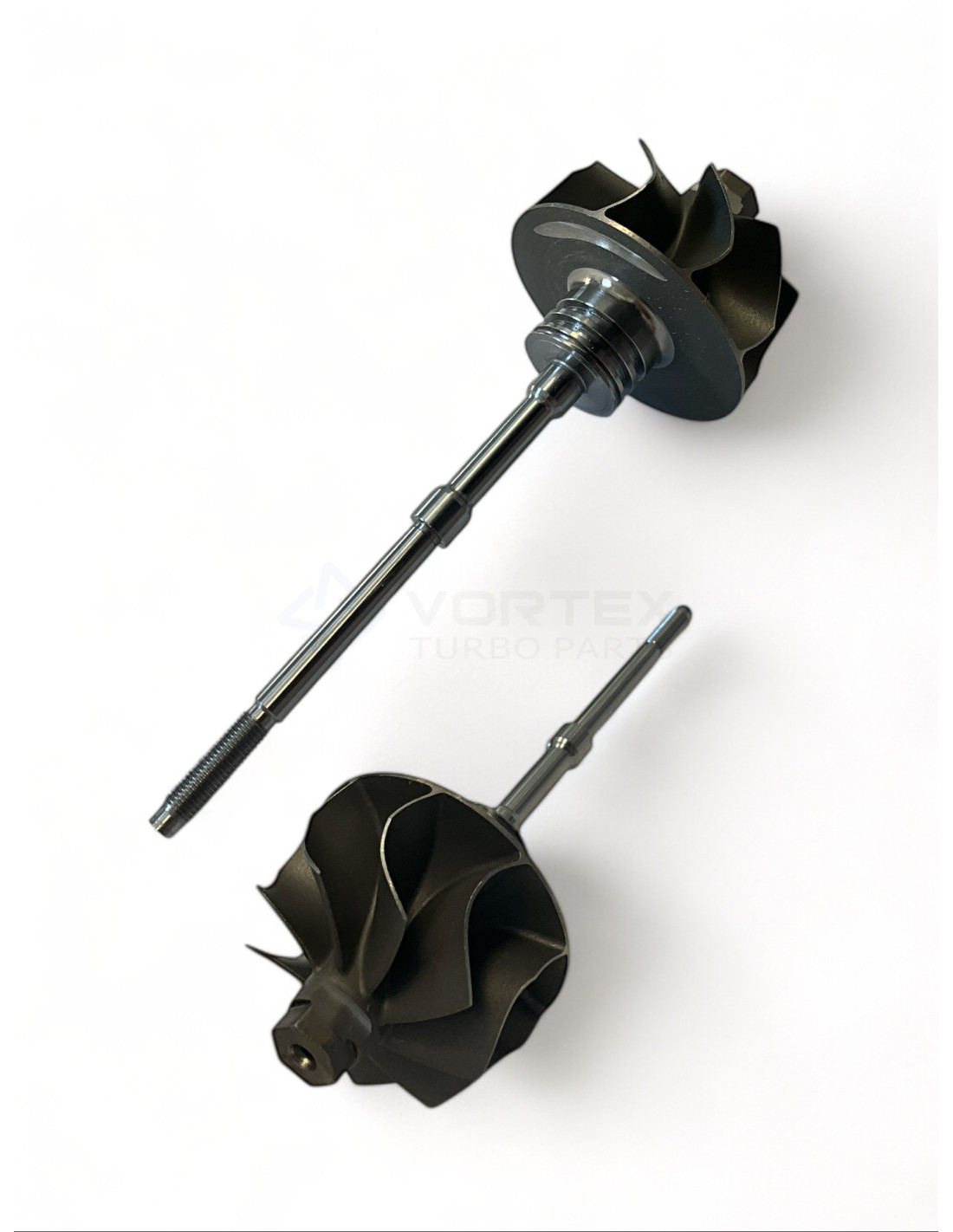

Shaft and wheel SW-G029 for turbos 766924-0001, 775274-0002, 775274-0003, 784521-0001, 803956-0001, 803956-0002, 803956-0003, 803956-0004, 804963-0001, 804963-0002.
SW-G029 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-G029
SW-G029 - Compatibility table
| Shaft and wheel SW-G029 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | GT14 | 766924-0001 | -- |
| Garrett | GTB1444VKZ | 775274-0002 | 28201-2A700, 28201-2A701, 28201-2A710, 282012A700, 282012A701, 282012A710, M28201-2A700, M28201-2A701, M28201-2A710, M282012A700, M282012A701, M282012A710 |
| Garrett | GTB1444VKZ | 775274-0003 | 28201-2A700, 28201-2A701, 28201-2A710, 282012A700, 282012A701, 282012A710, M28201-2A700, M28201-2A701, M28201-2A710, M282012A700, M282012A701, M282012A710 |
| Garrett | GT14 | 784521-0001 | 55209153, 55220701, 71724373, 71724374, 71794564 |
| Garrett | GTB1446VZK | 803956-0001 | 55230178 |
| Garrett | GTB1446VZK | 803956-0002 | 55239695, 55246405 |
| Garrett | GTB1446VZK | 803956-0003 | 55239695, 55246405 |
| Garrett | GTB1446VZK | 803956-0004 | 55239695, 55246405 |
| Garrett | GTB1446VZ | 804963-0001 | -- |
| Garrett | GTB1446VZ | 804963-0002 | -- |
| Garrett | GTB1446VZ | 804963-0003 | -- |
SW-G029 - Part Properties
Blades (Shaft blades count): 9
Type (Shaft & Wheel Type): Slender
Inducer Diameter A (Inducer Diameter A): 39.0
Exducer Diameter B (Exducer Diameter B): 35.0
Tip Height C (Tip Height C): 8.5
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0
Shaft Length (mm) (Shaft Length (mm)): 80.0
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Twin
Model (Model): GT14
766924-0001, 28201-2A700, 28201-2A701, 28201-2A710, 282012A700, 282012A701, 282012A710, 775274-0002, M28201-2A700, M28201-2A701, M28201-2A710, M282012A700, M282012A701, M282012A710, 28201-2A700, 28201-2A701, 28201-2A710, 282012A700, 282012A701, 282012A710, 775274-0003, M28201-2A700, M28201-2A701, M28201-2A710, M282012A700, M282012A701, M282012A710, 55209153, 55220701, 71724373, 71724374, 71794564, 784521-0001, 55230178, 803956-0001, 55239695, 55246405, 803956-0002, 55239695, 55246405, 803956-0003, 55239695, 55246405, 803956-0004, 804963-0001, 804963-0002, 804963-0003
Data updated: 2025-02-19 16:29:30
