Shaft and wheel SW-G058
Shaft and wheel SW-G058

Shaft and wheel SW-G058

SW-G058
New
In Stock (9 Items)
€39.33
Tax included

434714-0021, SW-G058

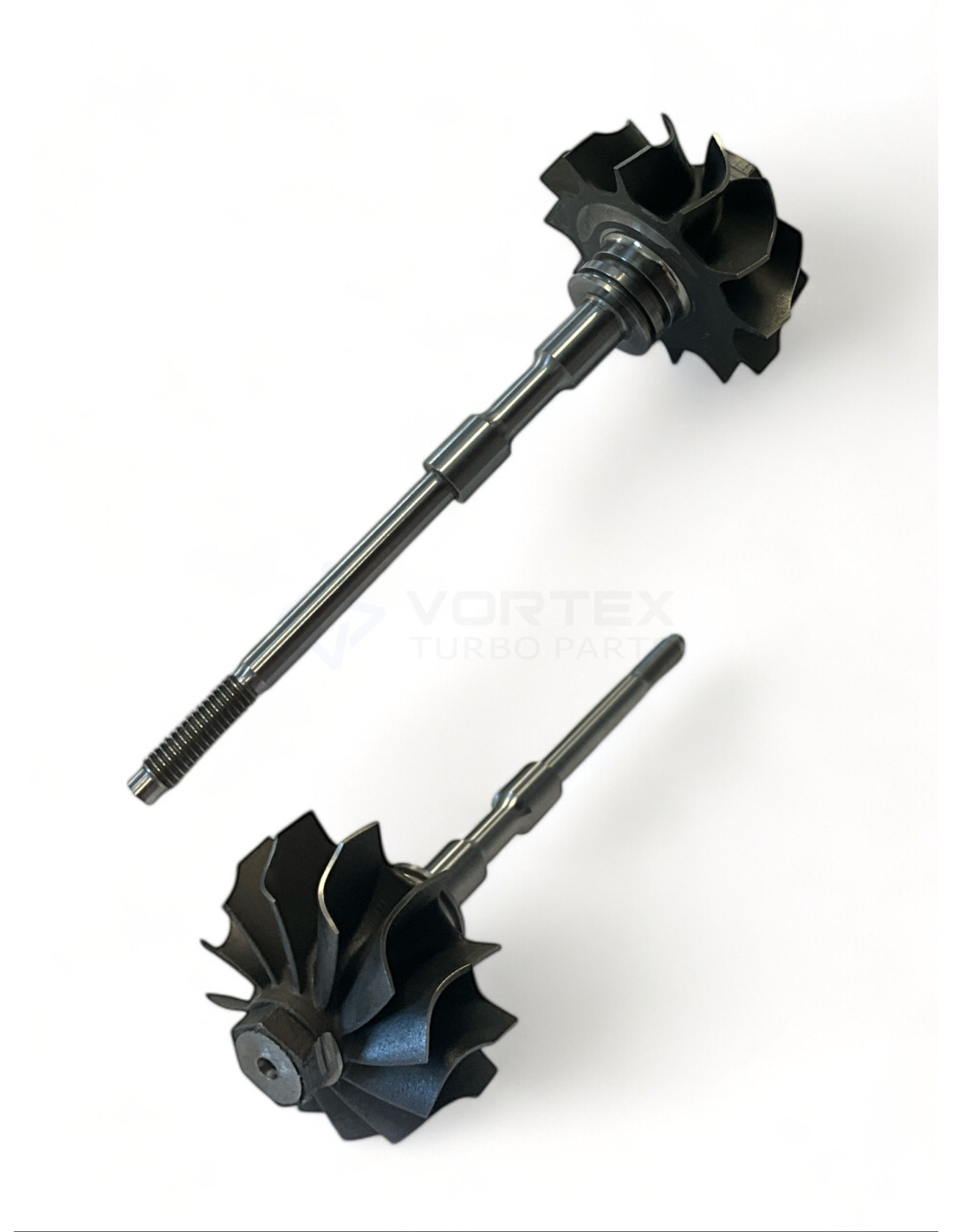

Shaft and wheel SW-G058 for turbos 715843-0001, 715924-0001, 715924-0002, 715924-0003, 715924-0004, 715924-0005, 716938-0001.



SW-G058 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G058

SW-G058 - Alternative numbers

GHO (Garrett original part number): 434714-0021

SW-G058 - Compatibility table

Shaft and wheel SW-G058 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1749S715843-0001--
GarrettGT1749S715924-000128200-42610, 2820042610
GarrettGT1749S715924-000228200-42700, 2820042700
GarrettGT1749S715924-000328200-42610, 2820042610
GarrettGT1749S715924-000428200-42700, 2820042700
GarrettGT1749S715924-000528200-42800, 2820042800
GarrettGT1749S716938-0001--

SW-G058 - Part Properties

Blades (Shaft blades count): 12

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 44.2

Exducer Diameter B (Exducer Diameter B): 37.5

Tip Height C (Tip Height C): 6.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

715843-0001, 28200-42610, 2820042610, 715924-0001, 28200-42700, 2820042700, 715924-0002, 28200-42610, 2820042610, 715924-0003, 28200-42700, 2820042700, 715924-0004, 28200-42800, 2820042800, 715924-0005, 716938-0001

Data updated: 2023-11-09 14:08:56
