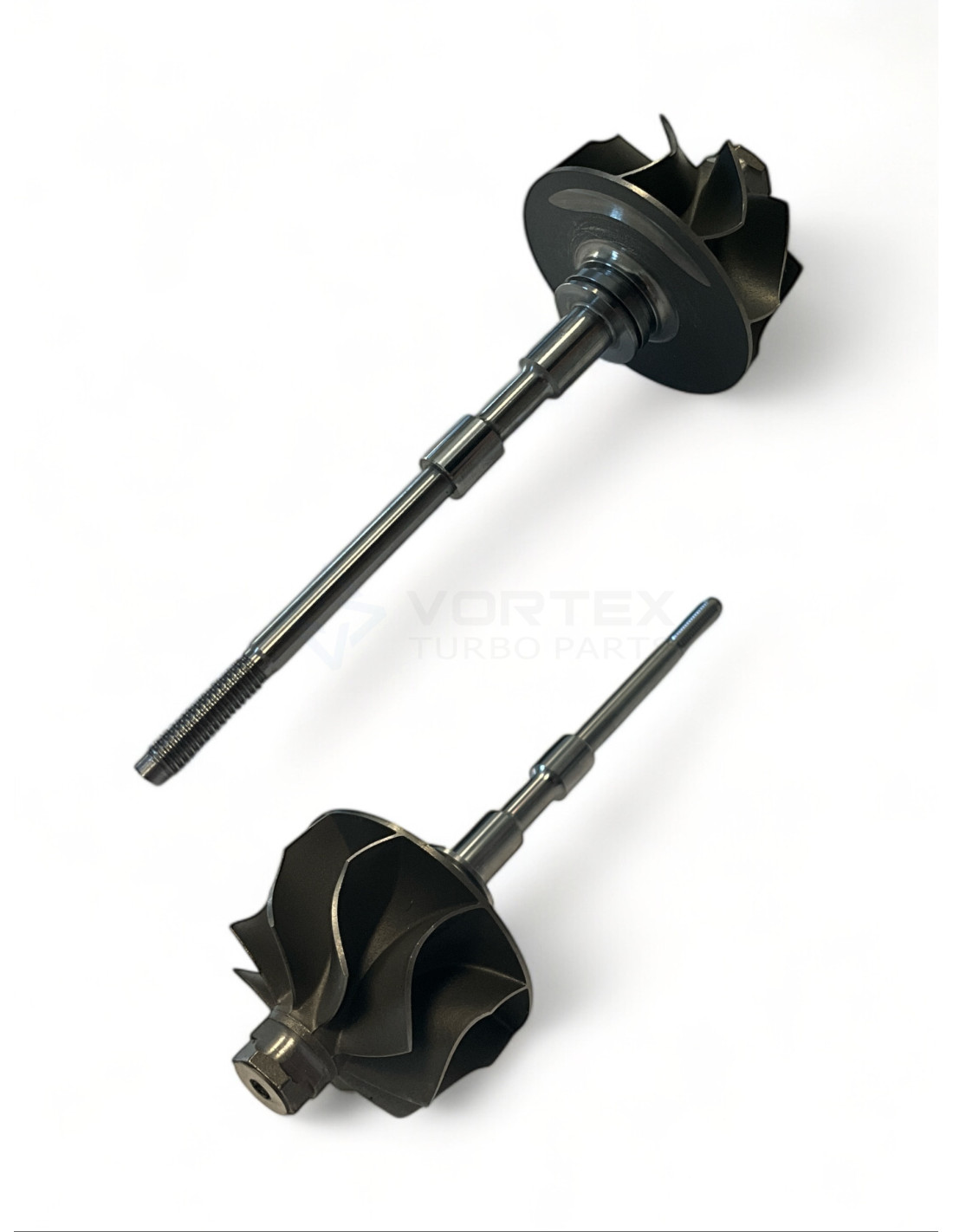

Shaft and wheel SW-G059
Shaft and wheel SW-G059

Shaft and wheel SW-G059

SW-G059
New
In Stock (13 Items)
€28.31
Tax included

Shaft and wheel SW-G059 for turbos 742110-0004, 742110-0006, 742110-0007, 758532-0012, 763647-0014, 763647-0019, 763647-0021.



SW-G059 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G059

SW-G059 - Compatibility table

Shaft and wheel SW-G059 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1746V742110-00044M5Q6K682AD
GarrettGT1746V742110-00064M5Q6K682AF
GarrettGT1746V742110-00074M5Q6K682AG
GarrettGTB1746VK758532-0012--
GarrettGTB1746V763647-00141453914, 1464596, 1478634, 1521485, 1567329, 4M5Q6K682AD, 4M5Q6K682AF, 7G9Q6K682BA, 7G9Q6K682BB, 7G9Q6K682BC, 7G9Q6K682BD
GarrettGTB1746V763647-00191453914, 1464596, 1478634, 1521485, 1567329, 4M5Q6K682AD, 4M5Q6K682AF, 7G9Q6K682BA, 7G9Q6K682BB, 7G9Q6K682BC, 7G9Q6K682BD
GarrettGTB1746V763647-00217G9Q6K682BD

SW-G059 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 43.0

Exducer Diameter B (Exducer Diameter B): 37.0

Tip Height C (Tip Height C): 7.95

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

4M5Q6K682AD, 742110-0004, 4M5Q6K682AF, 742110-0006, 4M5Q6K682AG, 742110-0007, 758532-0012, 1453914, 1464596, 1478634, 1521485, 1567329, 4M5Q6K682AD, 4M5Q6K682AF, 763647-0014, 7G9Q6K682BA, 7G9Q6K682BB, 7G9Q6K682BC, 7G9Q6K682BD, 1453914, 1464596, 1478634, 1521485, 1567329, 4M5Q6K682AD, 4M5Q6K682AF, 763647-0019, 7G9Q6K682BA, 7G9Q6K682BB, 7G9Q6K682BC, 7G9Q6K682BD, 763647-0021, 7G9Q6K682BD

Data updated: 2024-09-16 18:57:17
