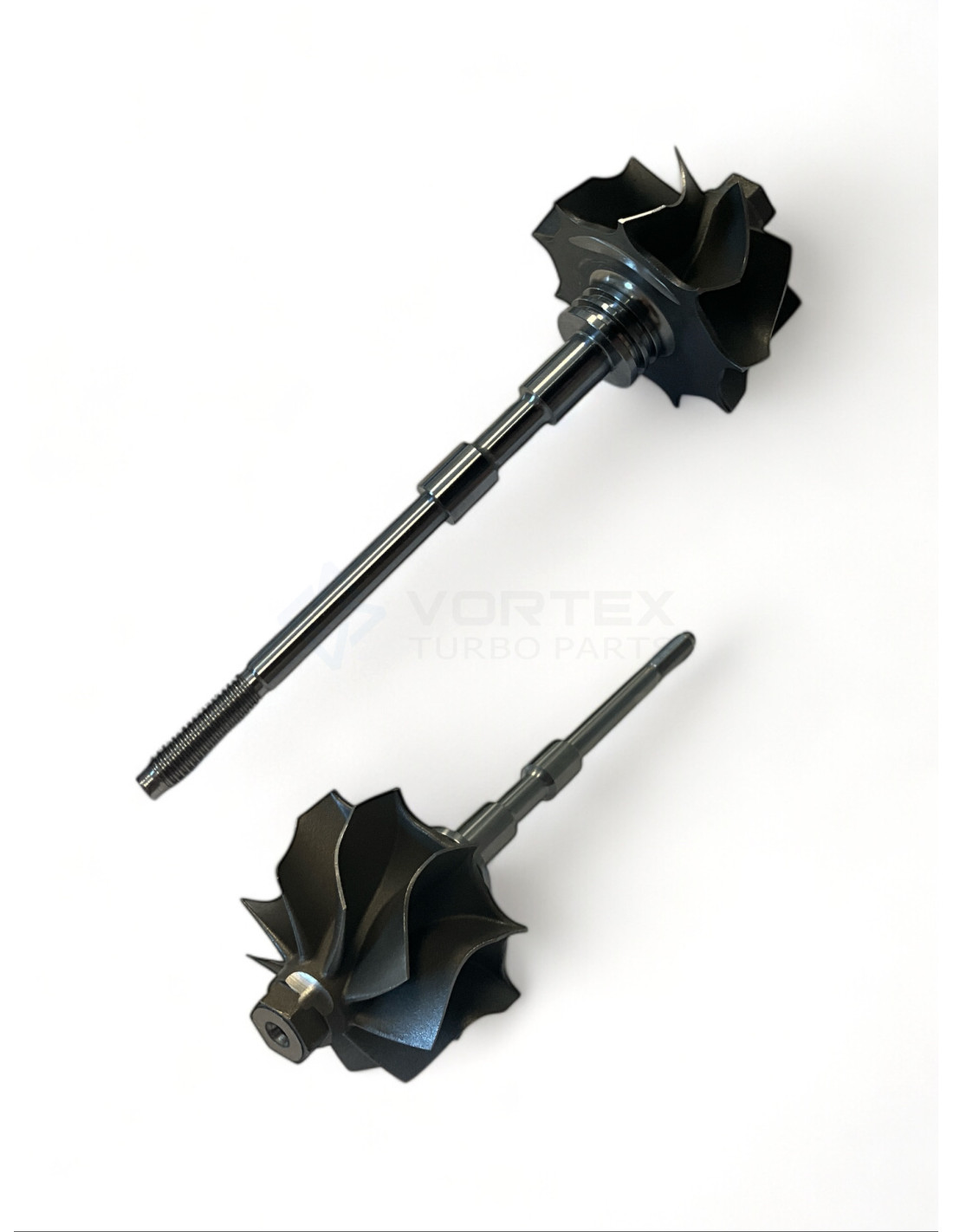

Shaft and wheel SW-G060
Shaft and wheel SW-G060

Shaft and wheel SW-G060

SW-G060
New
Out-of-Stock
€23.60
Tax included

Shaft and wheel SW-G060 for turbos 741785-0004, 741785-0007, 741785-0010, 741785-0013, 741785-0014, 741785-0016, 742785-0004, 742785-0007, 742785-0010, 742785-0013.




SW-G060 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G060

SW-G060 - Compatibility table

Shaft and wheel SW-G060 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1749V741785-00047792413
GarrettGT1749V741785-00077792413
GarrettGT1749V741785-00107792412F
GarrettGT1749V741785-00137792412
GarrettGT1749V741785-00147792413
GarrettGT1749V741785-00167792413
GarrettGTA1749VK742785-0004--
GarrettGTA1749VK742785-0007--
GarrettGTA1749VK742785-0010--
GarrettGTA1749VK742785-0013--
GarrettGT1749V758219-000203G145702F
GarrettGT1749V758219-000303G145702F, 03G145702K
GarrettGT1749V758219-000403G145702F, 03G145702K
GarrettGT1749V761437-0003--
GarrettGT1749V761437-0005--
GarrettGT1749V761437-0006--

SW-G060 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 43.1

Exducer Diameter B (Exducer Diameter B): 36.0

Tip Height C (Tip Height C): 6.3

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Twin

Model (Model): GT15-25

741785-0004, 7792413, 741785-0007, 7792413, 741785-0010, 7792412F, 741785-0013, 7792412, 741785-0014, 7792413, 741785-0016, 7792413, 742785-0004, 742785-0007, 742785-0010, 742785-0013, 03G145702F, 758219-0002, 03G145702F, 03G145702K, 758219-0003, 03G145702F, 03G145702K, 758219-0004, 761437-0003, 761437-0005, 761437-0006

Data updated: 2024-09-16 18:50:39
