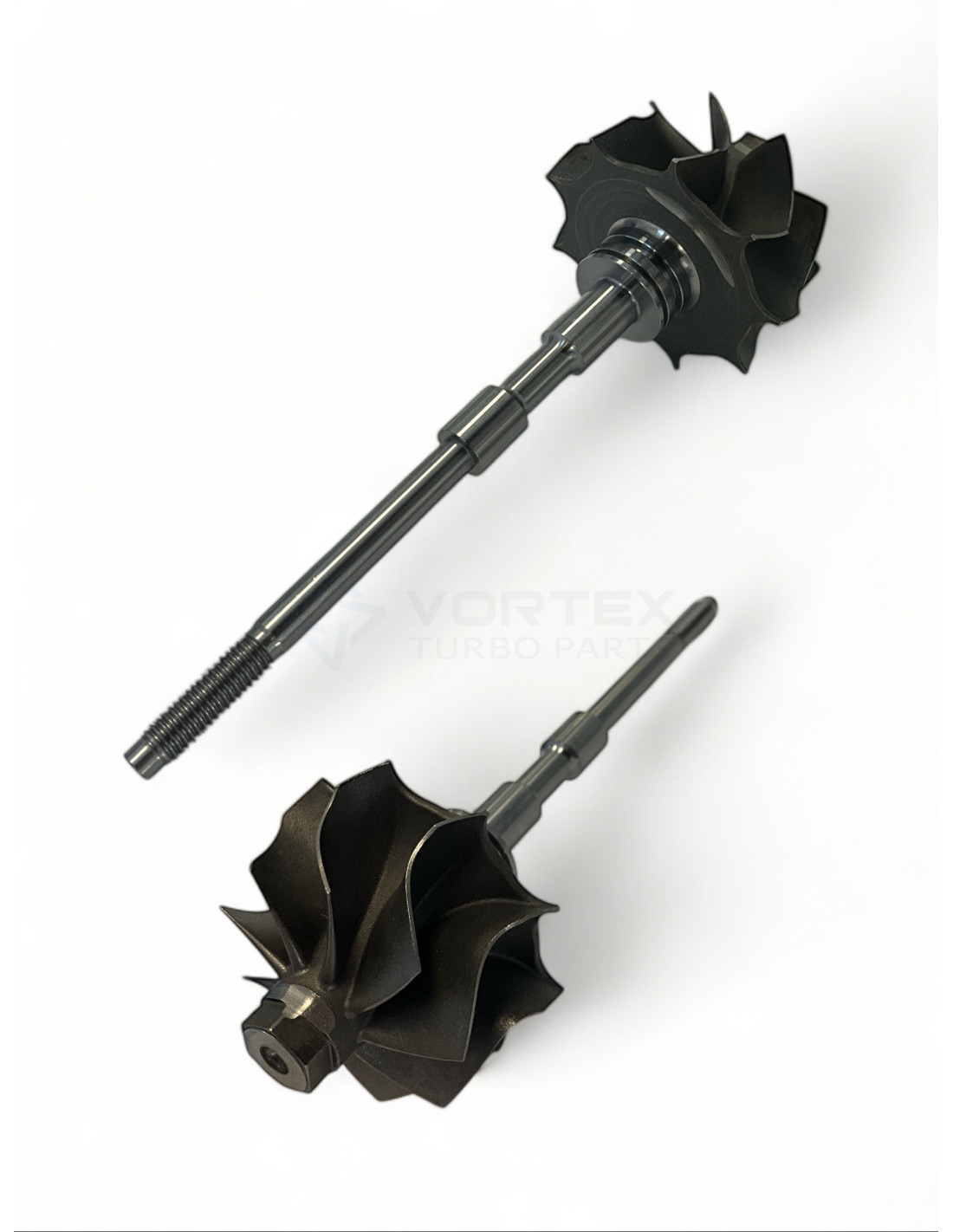

Shaft and wheel SW-G062
Shaft and wheel SW-G062

Shaft and wheel SW-G062

SW-G062
New
In Stock (34 Items)
€23.60
Tax included

434533-0006, 434533-0012, 434533-0038, SW-G062

Shaft and wheel SW-G062 for turbos 701470-0001, 701470-0002, 703672-0001, 703672-0002, 703672-0003, 703672-0004, 703673-0001, 703673-0002, 704226-0007, 704226-0010.



SW-G062 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G062

SW-G062 - Alternative numbers

GHO (Garrett original part number): 434533-0006

GHO (Garrett original part number): 434533-0012

GHO (Garrett original part number): 434533-0038

SW-G062 - Compatibility table

Shaft and wheel SW-G062 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1749V701470-0001--
GarrettGT1749V701470-0002--
GarrettGTA1749VK703672-00012249865B
GarrettGTA1749VK703672-000277854099
GarrettGTA1749VK703672-00032249865E
GarrettGTA1749VK703672-000477854099C
GarrettGTA1749VK703673-0001--
GarrettGTA1749VK703673-0002--
GarrettGT1749V704226-00071126058, 1S7Q6K682BH
GarrettGTA1749MV704226-00101126058, 1S7Q6K682BH
GarrettGT1749V705650-0001--
GarrettGT1749V708639-000236000721, 36002419, 7701473526, 7701474960, 7701477263, 7701478024, 7711135336, 7711135749, 7711368748, 7711497146, 8200110519
GarrettGT1749V708639-000336000721, 36002419, 7701473526, 7701474960, 7701477263, 7701478024, 7711135336, 7711135749, 7711368748, 7711497146, 8200110519A
GarrettGT1749V708639-00047701473526, 7701474960, 7701477263, 7701478024, 7711135336, 7711135749, 7711368748, 7711497146, 8200256077
GarrettGT1749V708639-00057701473526, 7701474960, 7701477263, 7701478024, 7711135336, 7711135749, 7711368748, 7711497146, 8200332125
GarrettGT1749V708639-00067701473526, 7701474960, 7701477263, 7701478024, 7711135336, 7711135749, 7711368748, 7711497146, 8200369581
GarrettGT1749V708639-00077701473526, 7701474960, 7701477263, 7701478024, 7711135336, 7711135749, 7711368748, 7711497146, 8200381645
GarrettGT1749V708639-00087701473526, 7701474960, 7701477263, 7701478024, 7711135336, 7711135749, 7711368748, 7711497146, 8200544912
GarrettGT1749V708639-00107701473526, 7701474960, 7701477263, 7701478024, 7711135336, 7711135749, 7711368748, 7711497146, 8200110519A, 8200683855
GarrettGT1749V708639-00117701473526, 7701474960, 7701477263, 7701478024, 7711135336, 7711135749, 7711368748, 7711497146, 8200110519A, 8200683855
GarrettGT1749V714467-0003--
GarrettGT1749V714467-0004--
GarrettGT1749V714467-0005--
GarrettGT1749V714467-0007--
GarrettGT1749V714467-0008--
GarrettGT1749V714467-0010--
GarrettGT1749V714467-0012--
GarrettGT1749V714467-0013--
GarrettGT1749V714467-0014--
GarrettGT1749V716213-0001038253016D, 038253016G, 038253019G, 03G253016R
GarrettGT1749V721021-0001038253016D, 038253016G, 038253019G, 03G253016R
GarrettGT1749V721021-0003038253016D, 038253016G, 038253019G, 03G253016R
GarrettGT1749V721021-0004038253016D, 038253016G, 038253016GV500, 038253019G, 03G253016R
GarrettGT1749V721021-0005038253016D, 038253016G, 038253016GV510, 038253019G, 03G253016R
GarrettGT1749V721021-0006038253016D, 038253016G, 038253019G, 03G253016R
GarrettGT1749V728680-0001--
GarrettGT1749V728680-0002--
GarrettGT1749V728680-0003--
GarrettGT1749V728680-0004--
GarrettGT1749V728680-0007--
GarrettGT1749V728680-0009--
GarrettGT1749V728680-0010--
GarrettGT1749V728680-0011--
GarrettGT1749V728680-0012--
GarrettGT1749V729325-0002070145701K, 070145701KV301
GarrettGT1749V729325-0003070145701K, 070145701KV302
GarrettGT1749V729325-0004070145701K, 070145701KV302
GarrettGT1749V742614-0001--
GarrettGT1749V742614-0002--
GarrettGT1749V742614-0003--
GarrettGT1749V742614-0004--

SW-G062 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 43.1

Exducer Diameter B (Exducer Diameter B): 37.5

Tip Height C (Tip Height C): 6.3

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

701470-0001, 701470-0002, 2249865B, 703672-0001, 703672-0002, 77854099, 2249865E, 703672-0003, 703672-0004, 77854099C, 703673-0001, 703673-0002, 1126058, 1S7Q6K682BH, 704226-0007, 1126058, 1S7Q6K682BH, 704226-0010, 705650-0001, 36000721, 36002419, 708639-0002, 7701473526, 7701474960, 7701477263, 7701478024, 7711135336, 7711135749, 7711368748, 7711497146, 8200110519, 36000721, 36002419, 708639-0003, 7701473526, 7701474960, 7701477263, 7701478024, 7711135336, 7711135749, 7711368748, 7711497146, 8200110519A, 708639-0004, 7701473526, 7701474960, 7701477263, 7701478024, 7711135336, 7711135749, 7711368748, 7711497146, 8200256077, 708639-0005, 7701473526, 7701474960, 7701477263, 7701478024, 7711135336, 7711135749, 7711368748, 7711497146, 8200332125, 708639-0006, 7701473526, 7701474960, 7701477263, 7701478024, 7711135336, 7711135749, 7711368748, 7711497146, 8200369581, 708639-0007, 7701473526, 7701474960, 7701477263, 7701478024, 7711135336, 7711135749, 7711368748, 7711497146, 8200381645, 708639-0008, 7701473526, 7701474960, 7701477263, 7701478024, 7711135336, 7711135749, 7711368748, 7711497146, 8200544912, 708639-0010, 7701473526, 7701474960, 7701477263, 7701478024, 7711135336, 7711135749, 7711368748, 7711497146, 8200110519A, 8200683855, 708639-0011, 7701473526, 7701474960, 7701477263, 7701478024, 7711135336, 7711135749, 7711368748, 7711497146, 8200110519A, 8200683855, 714467-0003, 714467-0004, 714467-0005, 714467-0007, 714467-0008, 714467-0010, 714467-0012, 714467-0013, 714467-0014, 038253016D, 038253016G, 038253019G, 03G253016R, 716213-0001, 038253016D, 038253016G, 038253019G, 03G253016R, 721021-0001, 038253016D, 038253016G, 038253019G, 03G253016R, 721021-0003, 038253016D, 038253016G, 038253016GV500, 038253019G, 03G253016R, 721021-0004, 038253016D, 038253016G, 038253016GV510, 038253019G, 03G253016R, 721021-0005, 038253016D, 038253016G, 038253019G, 03G253016R, 721021-0006, 728680-0001, 728680-0002, 728680-0003, 728680-0004, 728680-0007, 728680-0009, 728680-0010, 728680-0011, 728680-0012, 070145701K, 070145701KV301, 729325-0002, 070145701K, 070145701KV302, 729325-0003, 070145701K, 070145701KV302, 729325-0004, 742614-0001, 742614-0002, 742614-0003, 742614-0004
