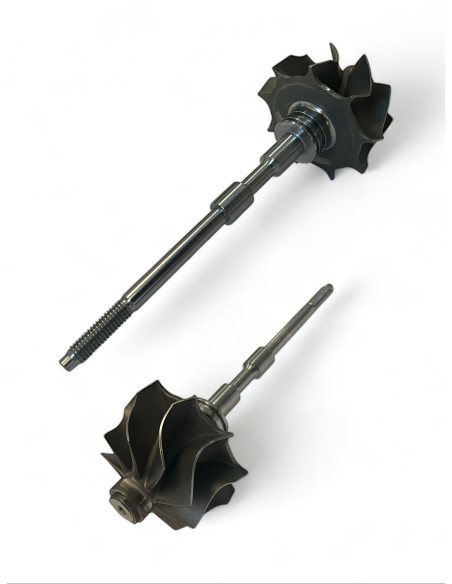

Shaft and wheel SW-G064
Shaft and wheel SW-G064

Shaft and wheel SW-G064

SW-G064
New
In Stock (181 Items)
€23.60
Tax included

434533-0007, 434533-0009, SW-G064

Shaft and wheel SW-G064 for turbos 454183-0004, 454183-0005, 454231-0002, 454232-0002, 454232-0006, 454232-0011, 454232-0014, 701470-0003, 701470-0004, 701854-0002.



SW-G064 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G064

SW-G064 - Alternative numbers

GHO (Garrett original part number): 434533-0007

GHO (Garrett original part number): 434533-0009

SW-G064 - Compatibility table

Shaft and wheel SW-G064 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1749V454183-0004028145702E
GarrettGT1749V454183-0005028145702E
GarrettGTA1749V454231-0002028145702R, 038145702L
GarrettGT1749V454232-0002038253019D
GarrettGT1749V454232-0006038253019D
GarrettGT1749V454232-0011038253019D, 038253019DV500
GarrettGTA1749MV454232-0014038253019DV500
GarrettGT1749V701470-0003--
GarrettGT1749V701470-0004--
GarrettGT1749V701854-0002--
GarrettGT1749V701855-0002028145702S, 1094743, 95VW9G438CA
GarrettGT1749V701855-0005028145702P, 028145702PV500
GarrettGT1749V701855-0006028145702S, 028145702SV500
GarrettGT1749V701855-0007028145702P, 028145702PV500
GarrettGT1749V701855-0008028145702S, 028145702SV500
GarrettGT1749V704505-0001--
GarrettGT1749V712077-0001--
GarrettGT1749V712078-0001--
GarrettGT1749V712078-0002--
GarrettGT1749V712968-0001038253019L, 03G253016P
GarrettGT1749V712968-0002038253019L, 03G253016P
GarrettGT1749V712968-0003038253019L, 038253019LV225, 03G253016P
GarrettGT1749V712968-0004038253019L, 038253019LV500, 03G253016P
GarrettGT1749V712968-0005038253019L, 038253019LV500, 03G253016P
GarrettGT1749V712968-0006038253019L, 03G253016P
GarrettGT1749V712968-0007038253019L, 03G253016P
GarrettGT1749V713673-0002038253019N, 038253019NV225, 03G253014E
GarrettGT1749V713673-0003038253019N, 038253019NV225, 03G253014E
GarrettGT1749V713673-0004038253019N, 038253019NV500, 03G253014E, 1135819, 1556571, 6M219G438AA, YM219G438BA
GarrettGT1749V713673-0005038253019NV500, 1135819, 6M219G438AA
GarrettGT1749V713673-0006038253019N, 03G253014E, 1556571
GarrettGT1749V713673-0007038253019N, 03G253014E, 1135819, 1556571, 6M219G438AA, YM219G438BA
GarrettGT174714485-0001--
GarrettGT174714485-0002--
GarrettGT17714485-0006--
GarrettGTA1749VK714486-00017786799B
GarrettGTA1749VK714486-00027786801B
GarrettGTA1749VK714486-00057786799C
GarrettGTA1749VK714486-00067786801C
GarrettGTA1749VK714486-00087786801C
GarrettGT1749V716215-0001--
GarrettGT1749V716216-0001--
GarrettGT1749V716419-0002--
GarrettGT1749V716860-0001038253016E, 038253016F, 03G253016Q
GarrettGT1749V716860-0002038253016E, 038253016F, 03G253016Q
GarrettGT1749V716860-0003038253016E, 038253016F, 03G253016Q
GarrettGTA1749V717858-0001038145702E, 038145702G, 038145702J, 038145702N
GarrettGTA1749V717858-0002038145702E, 038145702EV110, 038145702G, 038145702J, 038145702N
GarrettGTA1749V717858-0003038145702E, 038145702G, 038145702J, 038145702N
GarrettGTA1749V717858-0004038145702E, 038145702G, 038145702GV105, 038145702J, 038145702N
GarrettGTA1749V717858-0005038145702E, 038145702G, 038145702J, 038145702N
GarrettGTA1749V717858-0006038145702E, 038145702G, 038145702GV505, 038145702J, 038145702N
GarrettGTA1749V717858-0007038145702E, 038145702G, 038145702GV550, 038145702J, 038145702N
GarrettGT1749V720855-0001038253016E, 038253016F, 03G253016Q
GarrettGT1749V720855-0003038253016E, 038253016F, 038253016FV115, 03G253016Q
GarrettGT1749V720855-0004038253016E, 038253016F, 038253016FV500, 03G253016Q
GarrettGT1749V720855-0005038253016E, 038253016F, 038253016FV510, 03G253016Q
GarrettGT1749V720855-0006038253016E, 038253016F, 03G253016Q
GarrettGT1749V720855-000703G253016Q
GarrettGT1749V721164-00031720127030, 1720127030A
GarrettGT1749V721164-00041720127040
GarrettGT1749V721164-00111720127030, 1720127030E
GarrettGT1749V721164-00121720127030, 1720127030D
GarrettGT1749V722010-000311657789077, 77890582A, 7789069E, 7789076F
GarrettGT1749V722010-000411657789077, 77890582A, 7789069E, 7789076F
GarrettGT1749V722010-000811657789077, 77890582A, 7789069E, 7789076F
GarrettGT1749V722011-000311657789076, 7789070E, 7789077F, 7789583A
GarrettGT1749V722011-000411657789076, 7789070E, 7789077F, 7789583A
GarrettGT1749V722011-000711657789076, 7789070E, 7789077F, 7789583A
GarrettGT1749V722730-0001038253016H
GarrettGT1749V722730-0003038253016H, 038253016HV500
GarrettGT1749V722730-0005038253016H, 038253016HV500
GarrettGT1749V724930-000203G253010J, 03G253014H, 03G253019A
GarrettGT1749V724930-000403G253010J, 03G253014H, 03G253019A
GarrettGT1749V724930-000603G253010J, 03G253014H, 03G253019A, 03G253019AV550
GarrettGT1749V725864-000114411AU600
GarrettGT1749V725864-000214411AU600
GarrettGT1749V727210-0001172010G010, 172010G01B
GarrettGT1749V729041-000928231-27900, 2823127900
GarrettGT1749V740911-00017790221C
GarrettGT1749V740911-00037790223C
GarrettGT1749V740911-00067790223D03
GarrettGT1749V740911-00077790223D03
GarrettGT1749V756062-000203G253014J, MN980201
GarrettGT1749V801891-00011720127030, 1720127030F
GarrettGT1749V801891-00021720127040, 1720127040D

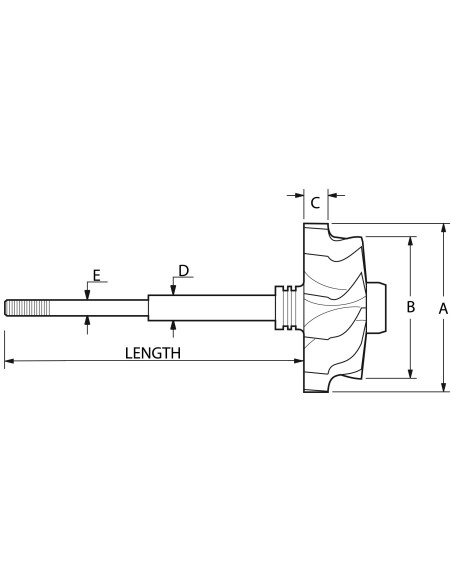

SW-G064 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 43.1

Exducer Diameter B (Exducer Diameter B): 36.0

Tip Height C (Tip Height C): 6.3

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

028145702E, 454183-0004, 028145702E, 454183-0005, 028145702R, 038145702L, 454231-0002, 038253019D, 454232-0002, 038253019D, 454232-0006, 038253019D, 038253019DV500, 454232-0011, 038253019DV500, 454232-0014, 701470-0003, 701470-0004, 701854-0002, 028145702S, 1094743, 701855-0002, 95VW9G438CA, 028145702P, 028145702PV500, 701855-0005, 028145702S, 028145702SV500, 701855-0006, 028145702P, 028145702PV500, 701855-0007, 028145702S, 028145702SV500, 701855-0008, 704505-0001, 712077-0001, 712078-0001, 712078-0002, 038253019L, 03G253016P, 712968-0001, 038253019L, 03G253016P, 712968-0002, 038253019L, 038253019LV225, 03G253016P, 712968-0003, 038253019L, 038253019LV500, 03G253016P, 712968-0004, 038253019L, 038253019LV500, 03G253016P, 712968-0005, 038253019L, 03G253016P, 712968-0006, 038253019L, 03G253016P, 712968-0007, 038253019N, 038253019NV225, 03G253014E, 713673-0002, 038253019N, 038253019NV225, 03G253014E, 713673-0003, 038253019N, 038253019NV500, 03G253014E, 1135819, 1556571, 6M219G438AA, 713673-0004, YM219G438BA, 038253019NV500, 1135819, 6M219G438AA, 713673-0005, 038253019N, 03G253014E, 1556571, 713673-0006, 038253019N, 03G253014E, 1135819, 1556571, 6M219G438AA, 713673-0007, YM219G438BA, 714485-0001, 714485-0002, 714485-0006, 714486-0001, 7786799B, 714486-0002, 7786801B, 714486-0005, 7786799C, 714486-0006, 7786801C, 714486-0008, 7786801C, 716215-0001, 716216-0001, 716419-0002, 038253016E, 038253016F, 03G253016Q, 716860-0001, 038253016E, 038253016F, 03G253016Q, 716860-0002, 038253016E, 038253016F, 03G253016Q, 716860-0003, 038145702E, 038145702G, 038145702J, 038145702N, 717858-0001, 038145702E, 038145702EV110, 038145702G, 038145702J, 038145702N, 717858-0002, 038145702E, 038145702G, 038145702J, 038145702N, 717858-0003, 038145702E, 038145702G, 038145702GV105, 038145702J, 038145702N, 717858-0004, 038145702E, 038145702G, 038145702J, 038145702N, 717858-0005, 038145702E, 038145702G, 038145702GV505, 038145702J, 038145702N, 717858-0006, 038145702E, 038145702G, 038145702GV550, 038145702J, 038145702N, 717858-0007, 038253016E, 038253016F, 03G253016Q, 720855-0001, 038253016E, 038253016F, 038253016FV115, 03G253016Q, 720855-0003, 038253016E, 038253016F, 038253016FV500, 03G253016Q, 720855-0004, 038253016E, 038253016F, 038253016FV510, 03G253016Q, 720855-0005, 038253016E, 038253016F, 03G253016Q, 720855-0006, 03G253016Q, 720855-0007, 1720127030, 1720127030A, 721164-0003, 1720127040, 721164-0004, 1720127030, 1720127030E, 721164-0011, 1720127030, 1720127030D, 721164-0012, 11657789077, 722010-0003, 77890582A, 7789069E, 7789076F, 11657789077, 722010-0004, 77890582A, 7789069E, 7789076F, 11657789077, 722010-0008, 77890582A, 7789069E, 7789076F, 11657789076, 722011-0003, 7789070E, 7789077F, 7789583A, 11657789076, 722011-0004, 7789070E, 7789077F, 7789583A, 11657789076, 722011-0007, 7789070E, 7789077F, 7789583A, 038253016H, 722730-0001, 038253016H, 038253016HV500, 722730-0003, 038253016H, 038253016HV500, 722730-0005, 03G253010J, 03G253014H, 03G253019A, 724930-0002, 03G253010J, 03G253014H, 03G253019A, 724930-0004, 03G253010J, 03G253014H, 03G253019A, 03G253019AV550, 724930-0006, 14411AU600, 725864-0001, 14411AU600, 725864-0002, 172010G010, 172010G01B, 727210-0001, 28231-27900, 2823127900, 729041-0009, 740911-0001, 7790221C, 740911-0003, 7790223C, 740911-0006, 7790223D03, 740911-0007, 7790223D03, 03G253014J, 756062-0002, MN980201, 1720127030, 1720127030F, 801891-0001, 1720127040, 1720127040D, 801891-0002
