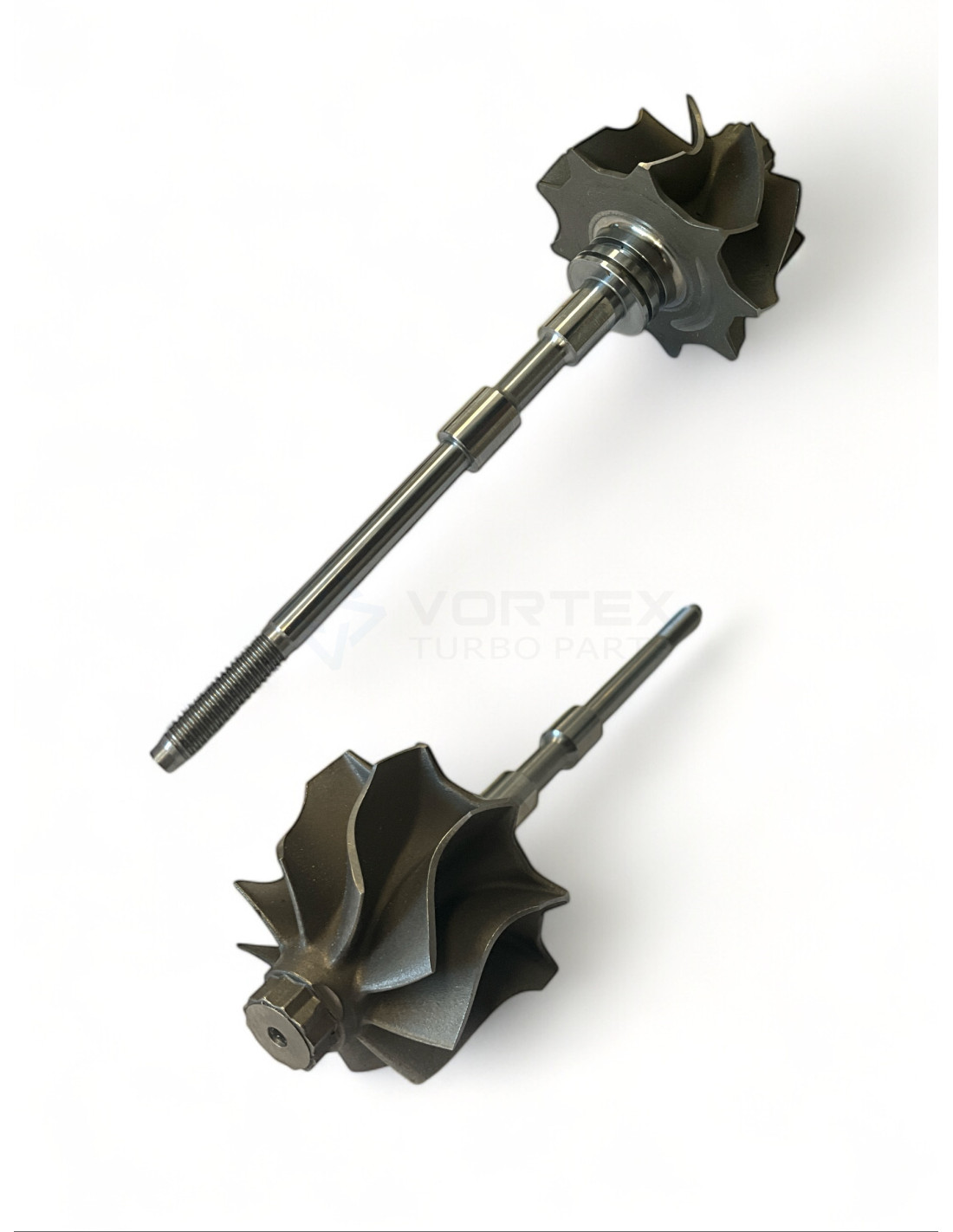

Shaft and wheel SW-G071
Shaft and wheel SW-G071

Shaft and wheel SW-G071

SW-G071
New
In Stock (6 Items)
€34.61
Tax included

434533-0017, SW-G071

Shaft and wheel SW-G071 for turbos 713517-0005, 713517-0006, 713517-0007, 713517-0008, 713517-0009, 713517-0010, 713517-0011, 713517-0012, 713517-0015, 713517-0016.



SW-G071 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G071

SW-G071 - Alternative numbers

GHO (Garrett original part number): 434533-0017

SW-G071 - Compatibility table

Shaft and wheel SW-G071 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1749V713517-00051S4Q6K682AD
GarrettGT1749V713517-00061S4Q6K682AE
GarrettGT1749V713517-00071S4Q6K682AF
GarrettGT1749V713517-0008PM1S4Q6K682AG
GarrettGT1749V713517-00091S4Q6K682AH
GarrettGTA1749MV713517-00101S4Q6K682AJ
GarrettGTA1749MV713517-00111222163, 1S4Q6K682AK
GarrettGTA1749MV713517-00121257260, 1S4Q6K682AL
GarrettGTA1749MV713517-00151349413, 1S4Q6K682AP
GarrettGTA1749MV713517-00161351396, 1S4Q6K682AS

SW-G071 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 43.1

Exducer Diameter B (Exducer Diameter B): 35.2

Tip Height C (Tip Height C): 6.3

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

1S4Q6K682AD, 713517-0005, 1S4Q6K682AE, 713517-0006, 1S4Q6K682AF, 713517-0007, 713517-0008, PM1S4Q6K682AG, 1S4Q6K682AH, 713517-0009, 1S4Q6K682AJ, 713517-0010, 1222163, 1S4Q6K682AK, 713517-0011, 1257260, 1S4Q6K682AL, 713517-0012, 1349413, 1S4Q6K682AP, 713517-0015, 1351396, 1S4Q6K682AS, 713517-0016

Data updated: 2024-09-16 19:02:30
