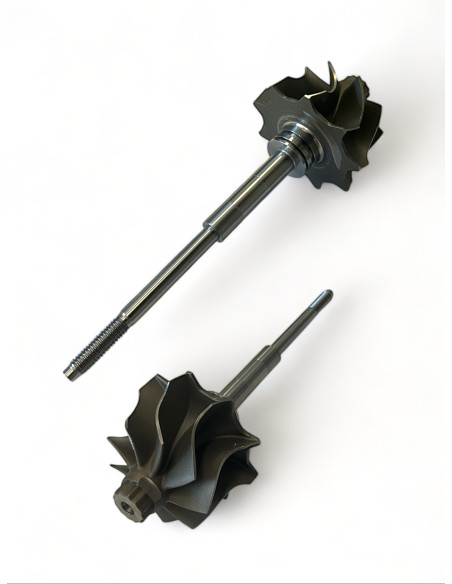

Shaft and wheel SW-G072
1100-030-115B, 1102-017-446, SW-G072, TW-047
Shaft and wheel SW-G072 for turbos 755507-0001, 755507-0002, 755507-0003, 755507-0006, 755507-0007, 755507-0008, 755507-0009, 755507-0011, 760680-0002, 760680-0003.
See below for more info.<
SW-G072 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-G072
SW-G072 - Alternative numbers
Jrone (Jrone): 1100-030-115B
Melett (Melett): 1102-017-446
KD (KODE): TW-047
SW-G072 - Compatibility table
Shaft and wheel SW-G072 - Compatible turbochargers | |||
---|---|---|---|
TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
Garrett | GTA1749V | 755507-0001 | 8200398585 |
Garrett | GTA1749V | 755507-0002 | 8200507286 |
Garrett | GT1746LV | 755507-0003 | 8200475873C |
Garrett | GT1746LV | 755507-0006 | 8200631167 |
Garrett | GT1746LV | 755507-0007 | 8200683857 |
Garrett | GTA1749V | 755507-0008 | 8200732947 |
Garrett | GT1746LV | 755507-0009 | 8200901185A |
Garrett | GT1746LV | 755507-0011 | 8200901185A |
Garrett | GTA1746LV | 760680-0002 | -- |
Garrett | GTA1746LV | 760680-0003 | -- |
Garrett | GTA1746LV | 760680-0004 | -- |
Garrett | GTA1746LV | 760680-0005 | -- |
Garrett | GTA1749V | 761618-0001 | -- |
Garrett | GTA1749V | 761618-0002 | -- |
Garrett | GTA1749V | 761618-0003 | -- |
Garrett | GTA1749V | 761618-0004 | -- |
SW-G072 - Part Properties
Blades (Shaft blades count): 9
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 43.0
Exducer Diameter B (Exducer Diameter B): 35.0
Tip Height C (Tip Height C): 6.0
Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1
Shaft Length (mm) (Shaft Length (mm)): 92.5
Back (Back): Open
Piston Ring Type (Piston Ring Type): Single
Model (Model): GT15-25
Data updated: 2022-12-19 17:01:23
