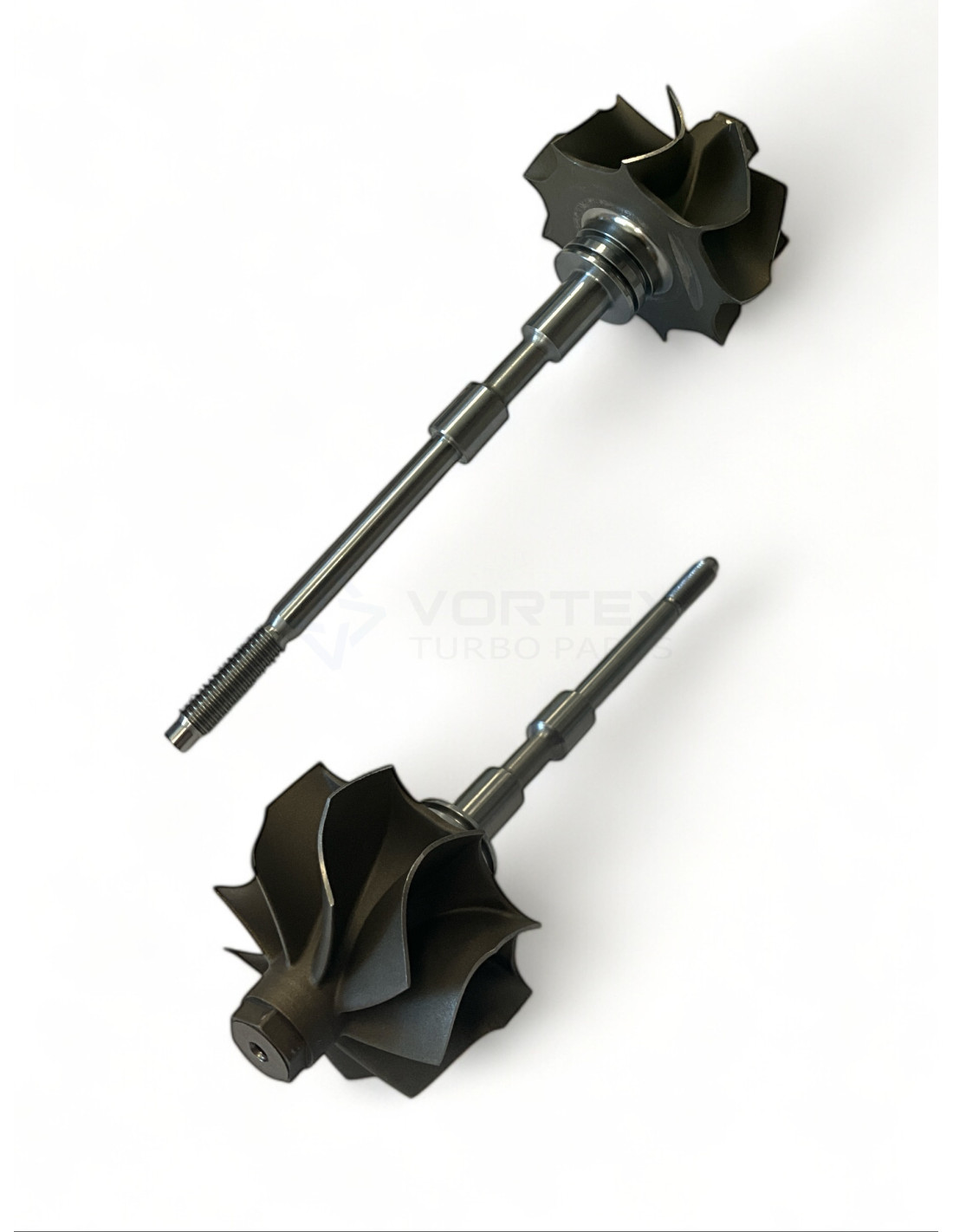

Shaft and wheel SW-G073
Shaft and wheel SW-G073

Shaft and wheel SW-G073

SW-G073
New
In Stock (44 Items)
€28.31
Tax included

Shaft and wheel SW-G073 for turbos 700273-0001, 700273-0002, 750441-0005, 753556-0002, 753847-0002, 753847-0006, 756047-0002, 756047-0004, 756047-0005, 756047-0006.



SW-G073 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G073

SW-G073 - Compatibility table

Shaft and wheel SW-G073 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1749S700273-0001--
GarrettGT1749S700273-0002--
GarrettGTA1849LV750441-0005--
GarrettGT1749V753556-00029654919580
GarrettGTA1749V753847-00021331247, 9654931780
GarrettGTA1749V753847-00061406472, 9659667380
GarrettGT1749V756047-00029658673480
GarrettGT1749V756047-00040375K8, 9662301280
GarrettGT1749V756047-00050375K8, 9682778680
GarrettGT1749V756047-00060375K8, 9682778680
GarrettGT1749V760774-00031483819, 30725134, 36002265, 3M5Q6K682CD, 9662464980
GarrettGT1749V760774-00051483819, 30725134, 36002265, 3M5Q6K682CD, 9662464980
GarrettGT1749V765993-0004--

SW-G073 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 43.1

Exducer Diameter B (Exducer Diameter B): 37.5

Tip Height C (Tip Height C): 8.3

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 89.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

700273-0001, 700273-0002, 750441-0005, 753556-0002, 9654919580, 1331247, 753847-0002, 9654931780, 1406472, 753847-0006, 9659667380, 756047-0002, 9658673480, 0375K8, 756047-0004, 9662301280, 0375K8, 756047-0005, 9682778680, 0375K8, 756047-0006, 9682778680, 1483819, 30725134, 36002265, 3M5Q6K682CD, 760774-0003, 9662464980, 1483819, 30725134, 36002265, 3M5Q6K682CD, 760774-0005, 9662464980, 765993-0004
