Shaft and wheel SW-G074
Shaft and wheel SW-G074

Shaft and wheel SW-G074

SW-G074
New
In Stock (32 Items)
€28.31
Tax included

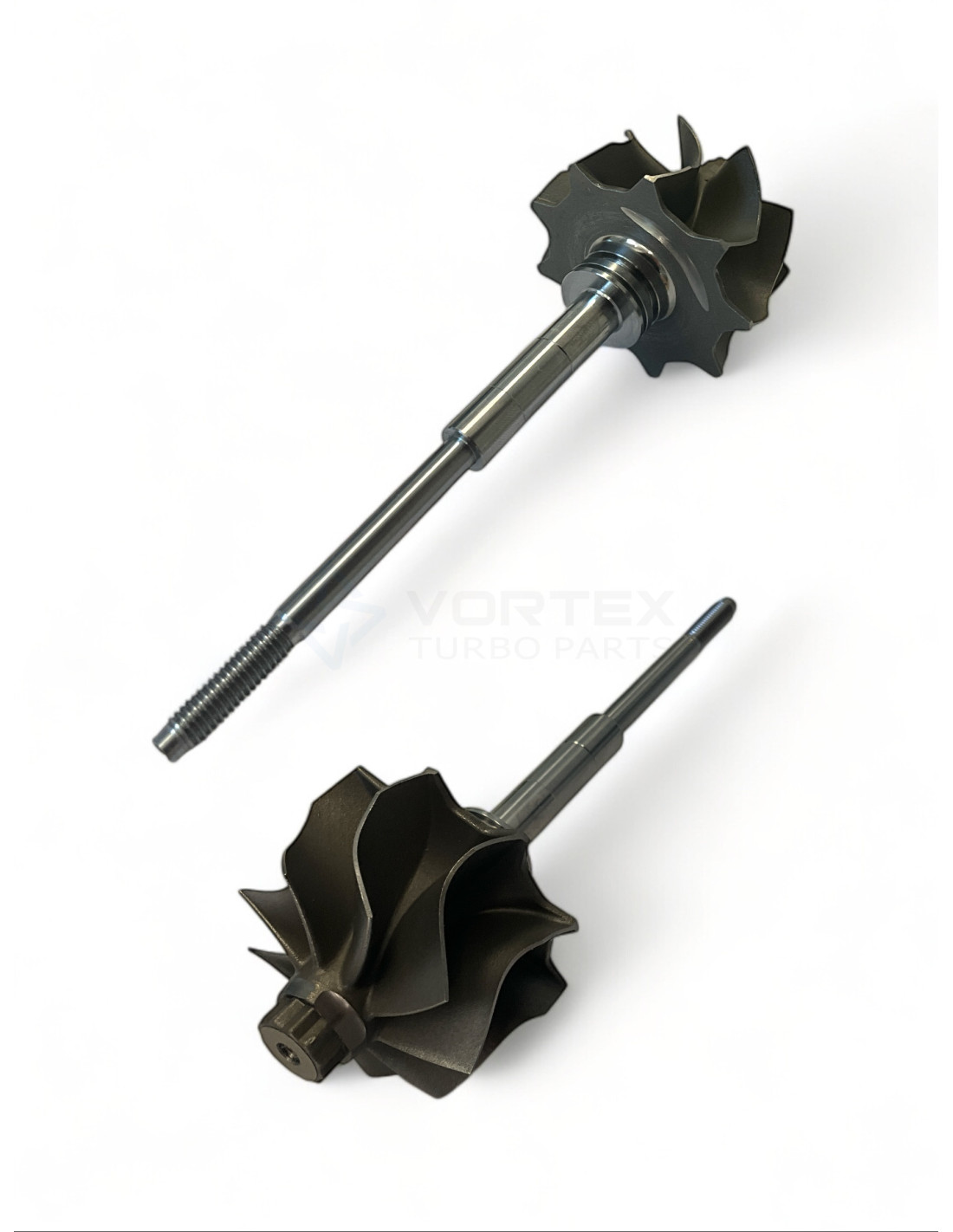

Shaft and wheel SW-G074 for turbos 701196-0001, 701196-0002, 701196-0003, 701196-0007, 710060-0001, 710060-0003, 733952-0001, 733952-0004, 740067-0002, 740080-0002.



SW-G074 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G074

SW-G074 - Compatibility table

Shaft and wheel SW-G074 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1752S701196-000114411-VB300, 14411VB300
GarrettGT1752S701196-0002--
GarrettGT1752S701196-0003--
GarrettGT1752S701196-000714411-VB301, 14411VB301
GarrettGT1749S710060-000128200-4A001, 282004A001
GarrettGT1749S710060-000328200-4A001, 282004A001
GarrettGT1752S733952-000128200-4A101, 282004A101
GarrettGT1752S733952-000428200-4A101, 282004A101
GarrettGT1749MV740067-000255188659, 55190872, 55193106, 55195788, 55196766, 55196859, 55205356, 55205483, 55211063, 55217692, 93184791
GarrettGT1749MV740080-000255188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474
GarrettGTA1749MV752233-0003--
GarrettGT1749MV752814-000155188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474
GarrettGT1749MV754821-0001--
GarrettGT1749MV755042-000155188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474
GarrettGT1749MV755042-000255188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474
GarrettGT1749MV755042-000355188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474
GarrettGT1749MV755046-000155196859
GarrettGT1749MV755046-000255196766
GarrettGT1749MV755046-000355205356
GarrettGT1749MV755046-00047550460004
GarrettGT1749MV755373-000155188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474
GarrettGT1749V758226-000402JDE4644, 6S7Q-6K682-AD, 6S7Q6K682AD
GarrettGT1749V758226-000802JDE4959, 6S7Q-6K682-AF, 6S7Q6K682AF
GarrettGTA1749MVK758226-001002C2S51563, 6S7Q-6K682-AG, 6S7Q6K682AG
GarrettGTA1749MVK758226-001402C2S51563, 6S7Q-6K682-AG, 6S7Q6K682AG
GarrettGT1749V760497-000155200925
GarrettGT1749V760497-000255205370
GarrettGT1749MV760822-000155195268, 55200807, 55205181, 55205475
GarrettGT1749V761899-0001--
GarrettGT1749V761899-0002--
GarrettGT1749V761899-0003--
GarrettGT1749MV762660-0002--
GarrettGT1749MV766340-000155205483
GarrettGT1749MV766340-000255205483
GarrettGT1749MV767835-000155188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474
GarrettGT1749V767836-0001--
GarrettGT1749MV767837-0001--
GarrettGTA2052VK767933-00081479061, 1495914, 1692434, 8C1Q6K682BA, 8C1Q6K682BB, 8C1Q6K682BC
GarrettGTA2052VK767933-00151479061, 1495914, 1692434, 8C1Q6K682BA, 8C1Q6K682BB, 8C1Q6K682BC
GarrettGT17773148-0001--
GarrettGT1749V773271-0001--
GarrettGT1749MV773720-0001--
GarrettGT1749V773721-0001--
GarrettGT1749V777250-000155214063
GarrettGT1749V777250-000255214063
GarrettGT1749MV777251-0001--

SW-G074 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 43.1

Exducer Diameter B (Exducer Diameter B): 38.0

Tip Height C (Tip Height C): 7.2

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 89.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25


14411-VB300, 14411VB300, 701196-0001, 701196-0002, 701196-0003, 14411-VB301, 14411VB301, 701196-0007, 28200-4A001, 282004A001, 710060-0001, 28200-4A001, 282004A001, 710060-0003, 28200-4A101, 282004A101, 733952-0001, 28200-4A101, 282004A101, 733952-0004, 55188659, 55190872, 55193106, 55195788, 55196766, 55196859, 55205356, 55205483, 55211063, 55217692, 740067-0002, 93184791, 55188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474, 740080-0002, 752233-0003, 55188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474, 752814-0001, 754821-0001, 55188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474, 755042-0001, 55188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474, 755042-0002, 55188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474, 755042-0003, 55196859, 755046-0001, 55196766, 755046-0002, 55205356, 755046-0003, 755046-0004, 7550460004, 55188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474, 755373-0001, 02JDE4644, 6S7Q-6K682-AD, 6S7Q6K682AD, 758226-0004, 02JDE4959, 6S7Q-6K682-AF, 6S7Q6K682AF, 758226-0008, 02C2S51563, 6S7Q-6K682-AG, 6S7Q6K682AG, 758226-0010, 02C2S51563, 6S7Q-6K682-AG, 6S7Q6K682AG, 758226-0014, 55200925, 760497-0001, 55205370, 760497-0002, 55195268, 55200807, 55205181, 55205475, 760822-0001, 761899-0001, 761899-0002, 761899-0003, 762660-0002, 55205483, 766340-0001, 55205483, 766340-0002, 55188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474, 767835-0001, 767836-0001, 767837-0001, 1479061, 1495914, 1692434, 767933-0008, 8C1Q6K682BA, 8C1Q6K682BB, 8C1Q6K682BC, 1479061, 1495914, 1692434, 767933-0015, 8C1Q6K682BA, 8C1Q6K682BB, 8C1Q6K682BC, 773148-0001, 773271-0001, 773720-0001, 773721-0001, 55214063, 777250-0001, 55214063, 777250-0002, 777251-0001

Data updated: 2024-10-11 16:43:40
