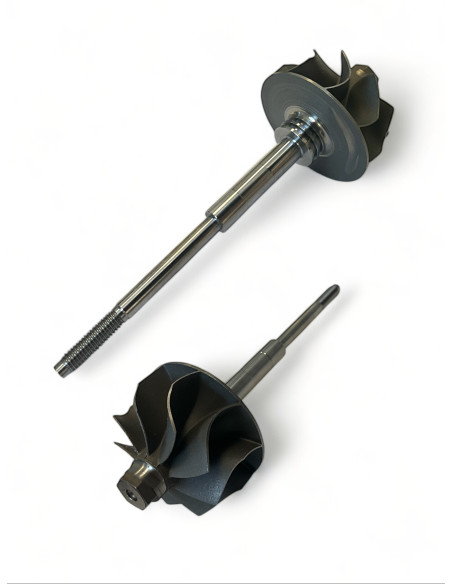

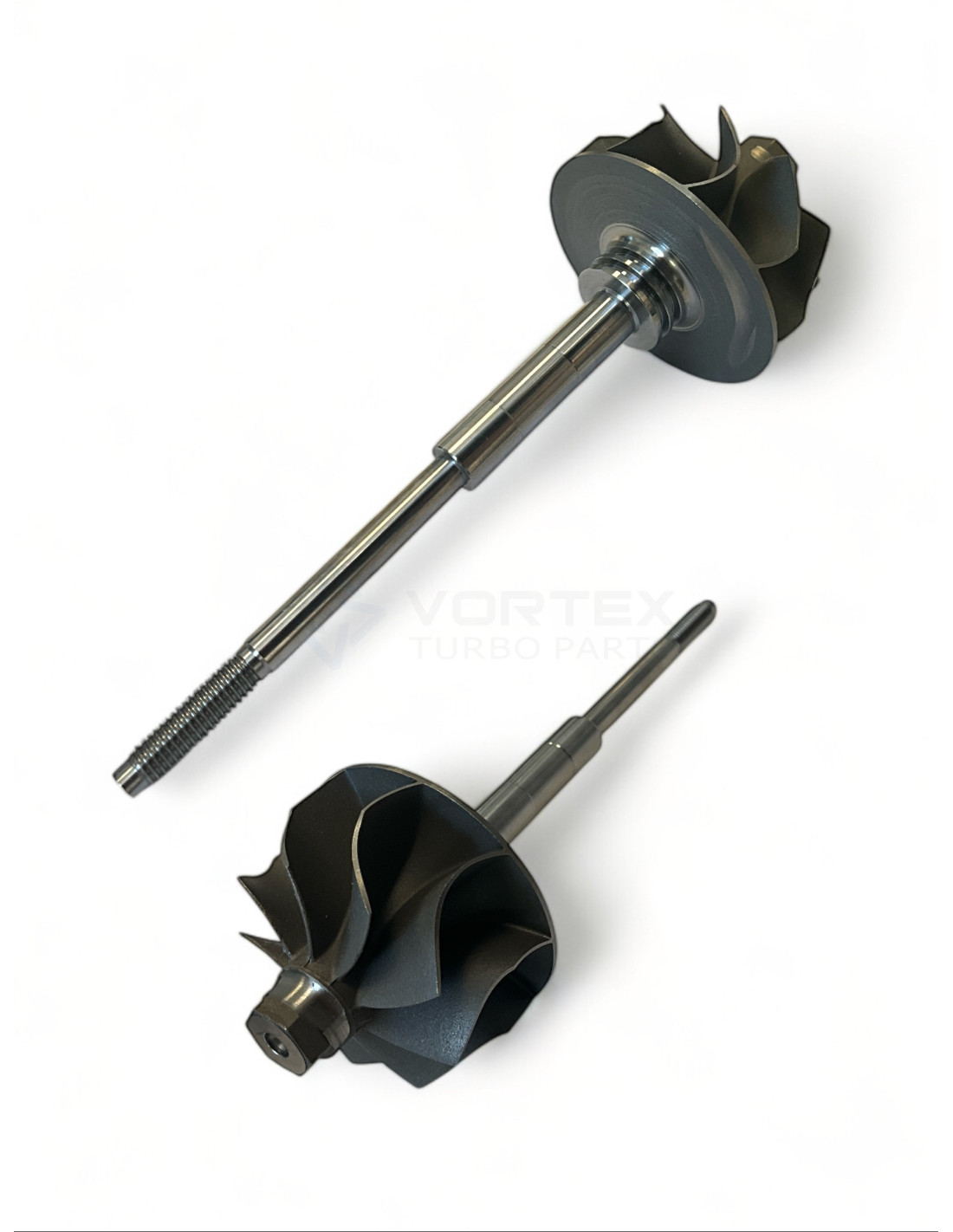

Shaft and wheel SW-G075
Shaft and wheel SW-G075

Shaft and wheel SW-G075

SW-G075
New
In Stock (5 Items)
€25.17
Tax included

Shaft and wheel SW-G075 for turbos 753544-0020, 753546-0014, 757042-0008, 757042-0010, 757042-0011, 757042-0013, 757042-0014, 757042-0015, 757042-0016, 757042-0018.



SW-G075 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G075

SW-G075 - Compatibility table

Shaft and wheel SW-G075 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGTB1749VK753544-00208G9Q-6K682-BA, 8G9Q6K682BA, 9685841580
GarrettGTB1752VK753546-0014--
GarrettGTB1749MV757042-000803G253010AV100
GarrettGTB1749MV757042-001003G253019NV395
GarrettGTB1749MV757042-001103G253010AV100
GarrettGTB1749MV757042-001303G253014KV100
GarrettGTB1749MV757042-001403G253010A
GarrettGTB1749MV757042-001503G253010AV100
GarrettGTB1749MV757042-001603G253010AV100
GarrettGTB1749MV757042-001803G253010AV100
GarrettGTB1752VK769674-00030375N3, 0375S2, 9683657880
GarrettGTB1752VK769674-00040375N3, 0375S2, 9683657880, 9684849580
GarrettGTB1756VK771955-0001--
GarrettGTB1752VL782217-000118900RL0G014M2
GarrettGTB1752VL782217-000218900RL0G020M2
GarrettGTB1752VL782217-000318900R3LG010M2
GarrettGTB1752784114-0002--
GarrettGTB1749VK786880-00061741779, 1946738, BK2Q6K682CA, BK2Q6K682GA, BK2Q6K682GB
GarrettGTB1749VK786880-00191741779, 1946738, BK2Q6K682CA, BK2Q6K682GA, BK2Q6K682GB
GarrettGTB1749VK786880-00211741779, 1946738, BK2Q6K682CA, BK2Q6K682GA, BK2Q6K682GB
GarrettGTB1749VK786880-00231741779, 1946738, BK2Q6K682CA, BK2Q6K682GA, BK2Q6K682GB
GarrettGTB1749V787556-0016--
GarrettGTB1749V787556-0017--
GarrettGTB1749V787556-0022--
GarrettGTB1752V787630-000131219857AC
GarrettGTB1752796017-0001--
GarrettGTB1756VK796911-0001--
GarrettGTB1749VK798128-00029676934380, CU3Q6K682AB
GarrettGTB1749VK798128-00049802446680, CU3Q6K682BA
GarrettGTB1749V854800-0001--

SW-G075 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 43.1

Exducer Diameter B (Exducer Diameter B): 38.0

Tip Height C (Tip Height C): 9.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Model (Model): GT15-25

753544-0020, 8G9Q-6K682-BA, 8G9Q6K682BA, 9685841580, 753546-0014, 03G253010AV100, 757042-0008, 03G253019NV395, 757042-0010, 03G253010AV100, 757042-0011, 03G253014KV100, 757042-0013, 03G253010A, 757042-0014, 03G253010AV100, 757042-0015, 03G253010AV100, 757042-0016, 03G253010AV100, 757042-0018, 0375N3, 0375S2, 769674-0003, 9683657880, 0375N3, 0375S2, 769674-0004, 9683657880, 9684849580, 771955-0001, 18900RL0G014M2, 782217-0001, 18900RL0G020M2, 782217-0002, 18900R3LG010M2, 782217-0003, 784114-0002, 1741779, 1946738, 786880-0006, BK2Q6K682CA, BK2Q6K682GA, BK2Q6K682GB, 1741779, 1946738, 786880-0019, BK2Q6K682CA, BK2Q6K682GA, BK2Q6K682GB, 1741779, 1946738, 786880-0021, BK2Q6K682CA, BK2Q6K682GA, BK2Q6K682GB, 1741779, 1946738, 786880-0023, BK2Q6K682CA, BK2Q6K682GA, BK2Q6K682GB, 787556-0016, 787556-0017, 787556-0022, 31219857AC, 787630-0001, 796911-0001, 798128-0002, 9676934380, CU3Q6K682AB, 798128-0004, 9802446680, CU3Q6K682BA, 854800-0001
