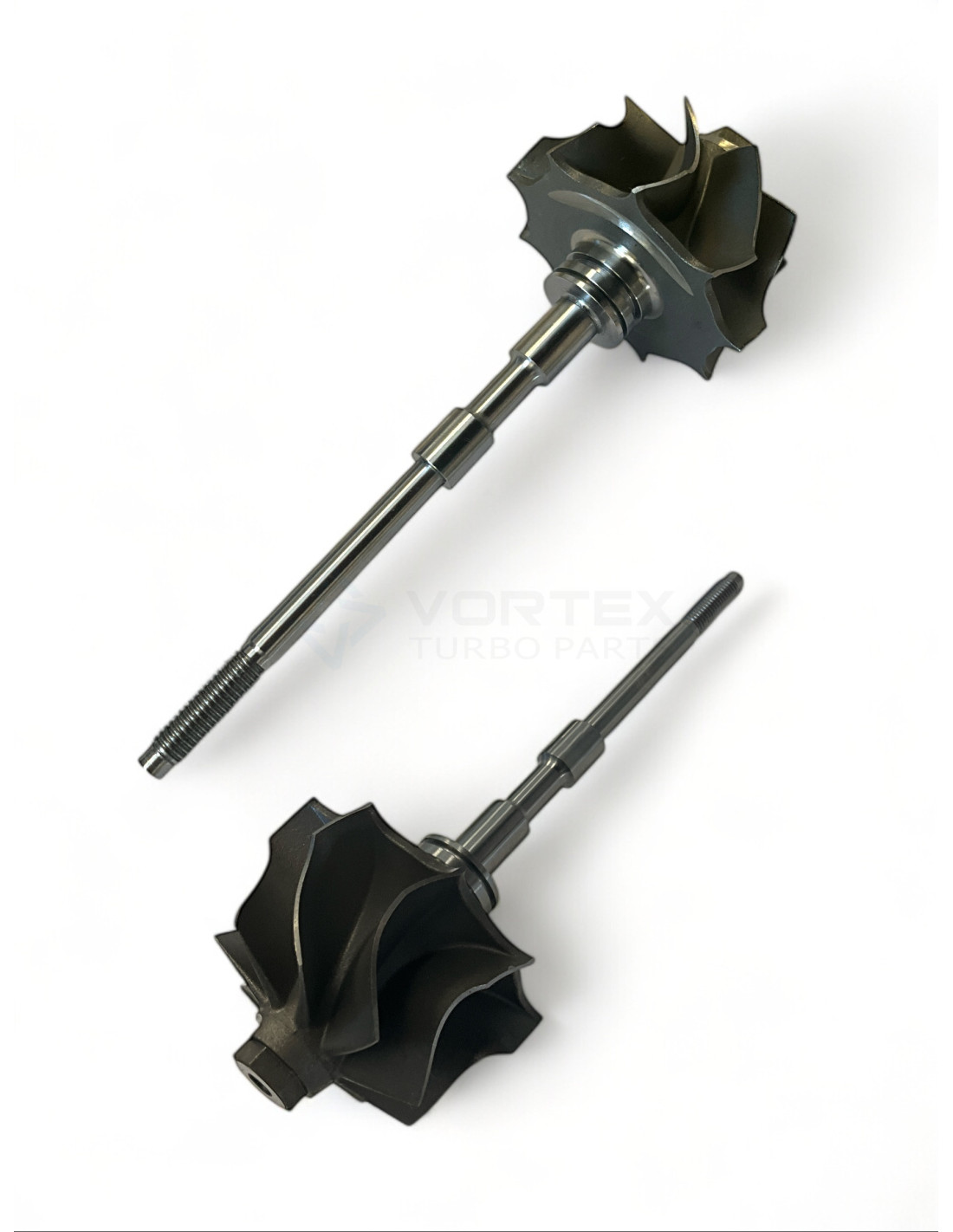

Shaft and wheel SW-G078
Shaft and wheel SW-G078

Shaft and wheel SW-G078

SW-G078
New
In Stock (20 Items)
€31.46
Tax included

434883-0001, SW-G078

Shaft and wheel SW-G078 for turbos 454135-0001, 454135-0002, 454135-0006, 454205-0001, 454205-0006, 480000-0426, 705954-0001, 705954-0002, 705954-0003, 705954-0006.



SW-G078 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G078

SW-G078 - Alternative numbers

GHO (Garrett original part number): 434883-0001

SW-G078 - Compatibility table

Shaft and wheel SW-G078 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT2052V454135-0001059145701C, 059145701G, 059145702D
GarrettGT2052V454135-0002059145701C, 059145701G, 059145702D
GarrettGT2052V454135-0006059145701C, 059145701G, 059145702D
GarrettGT2052V454205-0001074145701D
GarrettGT2052V454205-0006074145701DV248
GarrettGT2052V480000-0426--
GarrettGT2052V705954-0001--
GarrettGT2052V705954-0002--
GarrettGT2052V705954-0003--
GarrettGT2052V705954-0006--
GarrettGTA2056V720931-0001070145701HV244
GarrettGTA2056V720931-0002070145701HV246
GarrettGTA2056V720931-0003070145701HV250, 070145701K
GarrettGTA2056V720931-0004070145702AV100
GarrettGTA2052V720931-0005070145702AV100

SW-G078 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 47.0

Exducer Diameter B (Exducer Diameter B): 38.7

Tip Height C (Tip Height C): 8.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

059145701C, 059145701G, 059145702D, 454135-0001, 059145701C, 059145701G, 059145702D, 454135-0002, 059145701C, 059145701G, 059145702D, 454135-0006, 074145701D, 454205-0001, 074145701DV248, 454205-0006, 480000-0426, 705954-0001, 705954-0002, 705954-0003, 705954-0006, 070145701HV244, 720931-0001, 070145701HV246, 720931-0002, 070145701HV250, 070145701K, 720931-0003, 070145702AV100, 720931-0004, 070145702AV100, 720931-0005

Data updated: 2024-09-16 19:00:44
