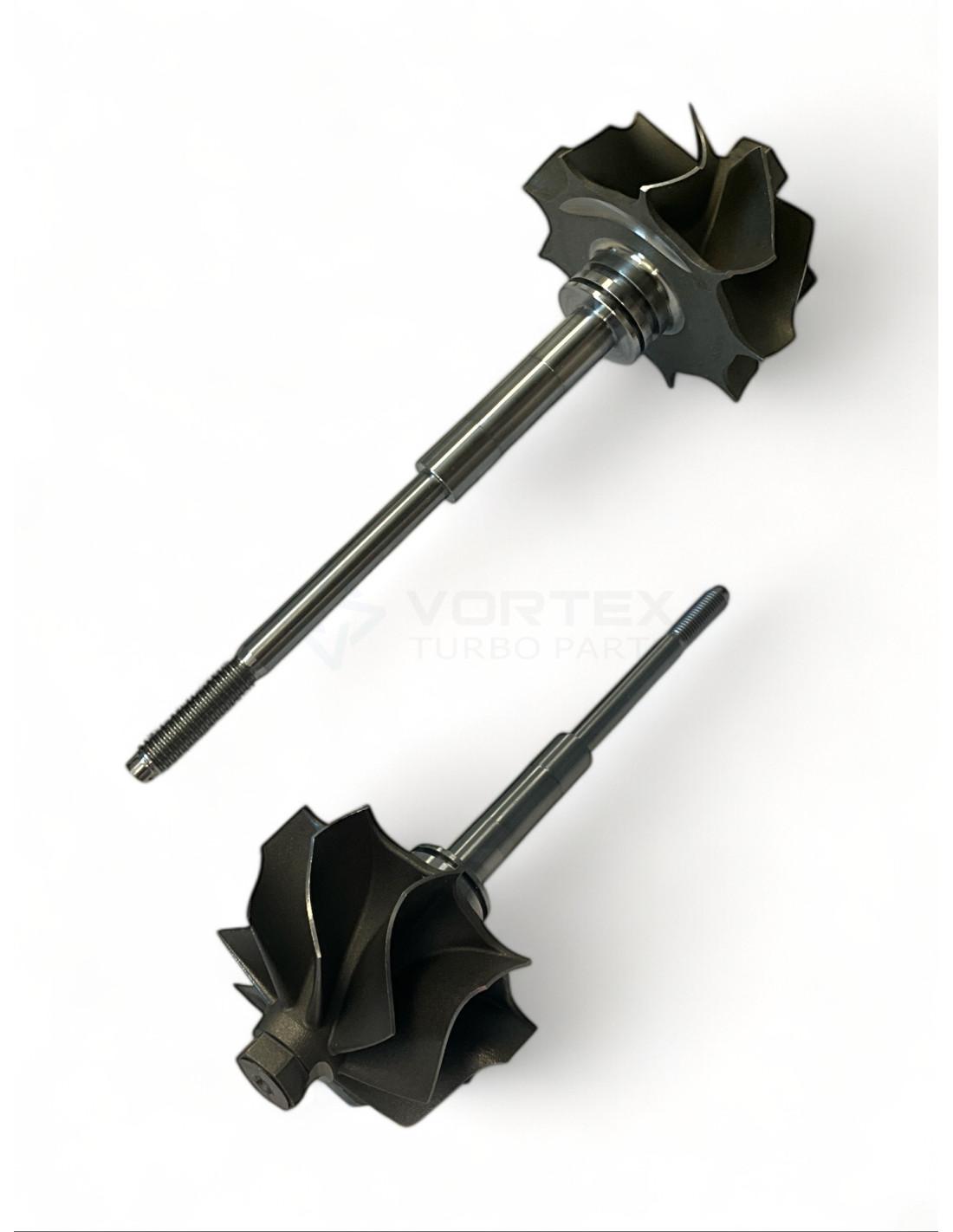

Shaft and wheel SW-G079
Shaft and wheel SW-G079

Shaft and wheel SW-G079

SW-G079
New
Last items in stock (1 Item)
€31.46
Tax included

434883-0003, 434883-0017, 434883-0030, SW-G079

Shaft and wheel SW-G079 for turbos 454135-0003, 454135-0005, 454135-0008, 454135-0009, 454135-0010, 716885-0001, 716885-0002, 716885-0003, 716885-0004, 716885-0005.



SW-G079 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G079

SW-G079 - Alternative numbers

GHO (Garrett original part number): 434883-0003

GHO (Garrett original part number): 434883-0017

GHO (Garrett original part number): 434883-0030

SW-G079 - Compatibility table

Shaft and wheel SW-G079 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT2052V454135-0003059145701D, 059145701E, 059145701F, 059145701K, 059145701S
GarrettGT2052V454135-0005059145701D, 059145701E, 059145701F, 059145701K, 059145701S
GarrettGT2052V454135-0008059145701D, 059145701E, 059145701F, 059145701K, 059145701S
GarrettGT2052V454135-0009059145701C, 059145701G, 059145702D
GarrettGTA2052V454135-0010059145701D, 059145701E, 059145701F, 059145701K, 059145701S
GarrettGT2056V716885-0001070145701J, 070145701JV244, 070145702B
GarrettGT2056V716885-0002070145701J, 070145701JV246, 070145702B
GarrettGT2056V716885-0003070145701J, 070145701JV250, 070145702B
GarrettGT2056V716885-0004070145701J, 070145702B, 070145702BV100
GarrettGTA2056V716885-0005070145701J, 070145702B, 070145702BV100
GarrettGT2052V724639-0001--
GarrettGT2052V724639-0002--
GarrettGT2052V724639-0003--
GarrettGT2052V724639-0004--

SW-G079 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 47.0

Exducer Diameter B (Exducer Diameter B): 38.7

Tip Height C (Tip Height C): 8.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

059145701D, 059145701E, 059145701F, 059145701K, 059145701S, 454135-0003, 059145701D, 059145701E, 059145701F, 059145701K, 059145701S, 454135-0005, 059145701D, 059145701E, 059145701F, 059145701K, 059145701S, 454135-0008, 059145701C, 059145701G, 059145702D, 454135-0009, 059145701D, 059145701E, 059145701F, 059145701K, 059145701S, 454135-0010, 070145701J, 070145701JV244, 070145702B, 716885-0001, 070145701J, 070145701JV246, 070145702B, 716885-0002, 070145701J, 070145701JV250, 070145702B, 716885-0003, 070145701J, 070145702B, 070145702BV100, 716885-0004, 070145701J, 070145702B, 070145702BV100, 716885-0005, 724639-0001, 724639-0002, 724639-0003, 724639-0004

Data updated: 2024-09-16 19:00:29
