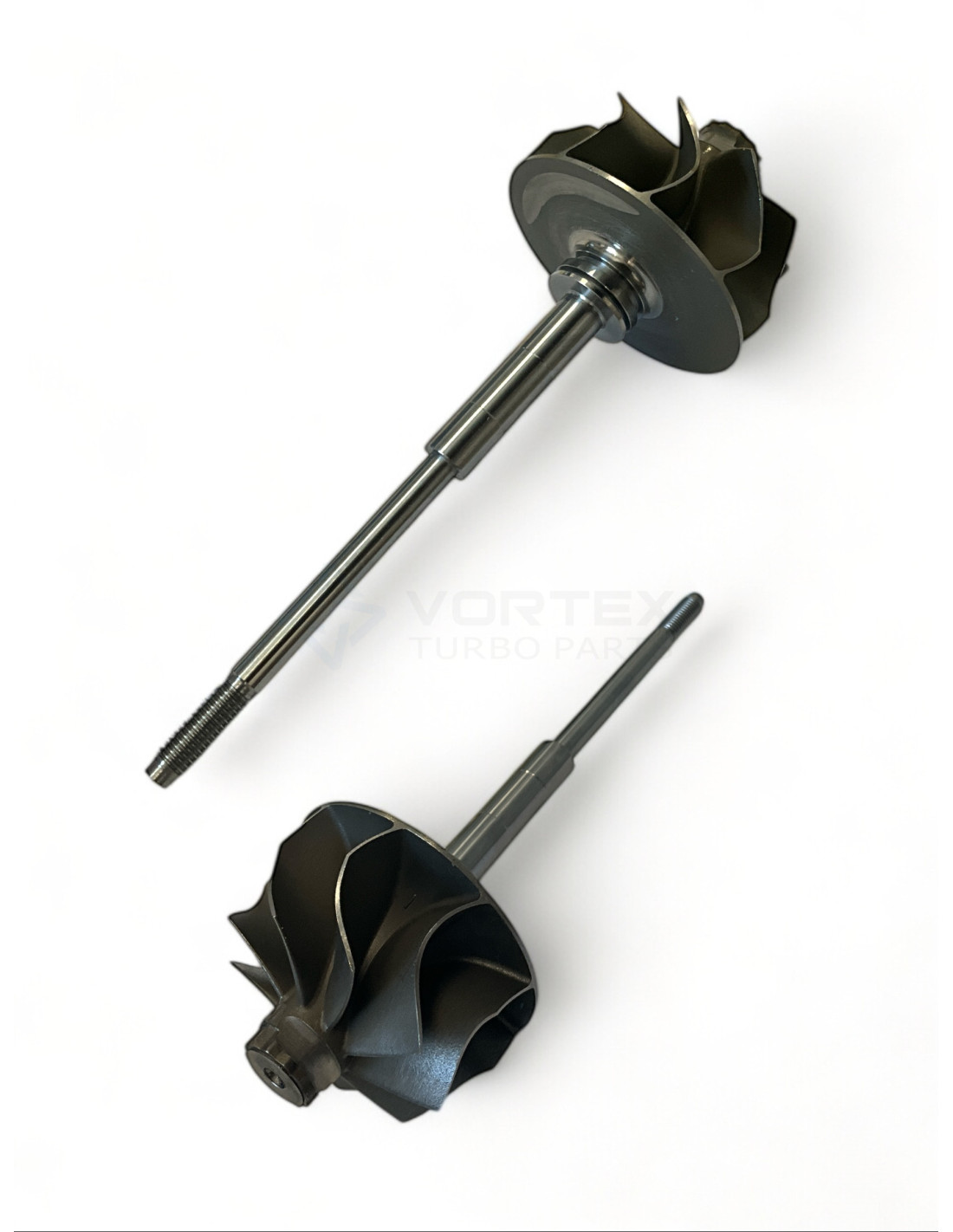

Shaft and wheel SW-G085
Shaft and wheel SW-G085

Shaft and wheel SW-G085

SW-G085
New
In Stock (50 Items)
€39.33
Tax included

Shaft and wheel SW-G085 for turbos 757779-0004, 757779-0010, 757779-0020, 757779-0021, 757779-0022, 762060-0006, 762060-0008.



SW-G085 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G085

SW-G085 - Compatibility table

Shaft and wheel SW-G085 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGTB2056VL757779-000430757080
GarrettGTB2056VL757779-001030757080
GarrettGTB2056VL757779-002031219698
GarrettGTB2056VL757779-002131293030
GarrettGTB2056VL757779-002231293507
GarrettGT2056V762060-000650442292
GarrettGT2056V762060-00085048265

SW-G085 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 47.0

Exducer Diameter B (Exducer Diameter B): 41.5

Tip Height C (Tip Height C): 9.3

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 99.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

30757080, 757779-0004, 30757080, 757779-0010, 31219698, 757779-0020, 31293030, 757779-0021, 31293507, 757779-0022, 50442292, 762060-0006, 5048265, 762060-0008

Data updated: 2024-10-11 17:13:56
