Shaft and wheel SW-G098
Shaft and wheel SW-G098

Shaft and wheel SW-G098

SW-G098
New
In Stock (17 Items)
€33.03
Tax included

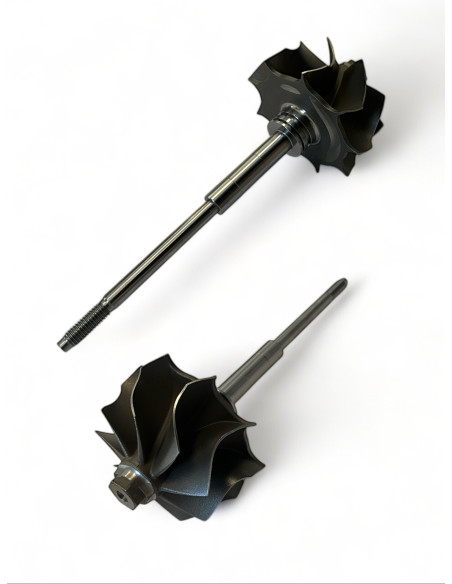

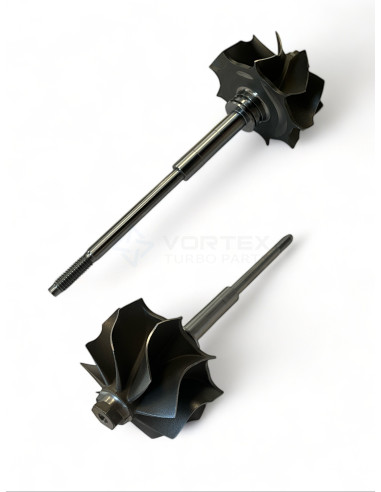

Shaft and wheel SW-G098 for turbos 700935-0001, 700935-0003, 700935-0004, 700935-0006, 704361-0004, 704361-0005, 704361-0006, 717661-0001, 717662-0001, 717662-0002.



SW-G098 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G098

SW-G098 - Compatibility table

Shaft and wheel SW-G098 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT2056V700935-000111657785992, 11657785993, 7785991B
GarrettGT2056V700935-00037785993B
GarrettGT2056V700935-000411657785992, 11657785993, 7785991C03
GarrettGT2056V700935-00067785993C03
GarrettGT2056V704361-00042248834E
GarrettGT2056V704361-000522499519
GarrettGT2056V704361-000622499509
GarrettGT2256V717661-0001--
GarrettGT2256V717662-0001--
GarrettGT2256V717662-0002--
GarrettGTA2256VK736088-0003--

SW-G098 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 50.0

Exducer Diameter B (Exducer Diameter B): 42.7

Tip Height C (Tip Height C): 7.2

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 99.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

11657785992, 11657785993, 700935-0001, 7785991B, 700935-0003, 7785993B, 11657785992, 11657785993, 700935-0004, 7785991C03, 700935-0006, 7785993C03, 2248834E, 704361-0004, 22499519, 704361-0005, 22499509, 704361-0006, 717661-0001, 717662-0001, 717662-0002, 736088-0003

Data updated: 2023-11-09 14:32:28
