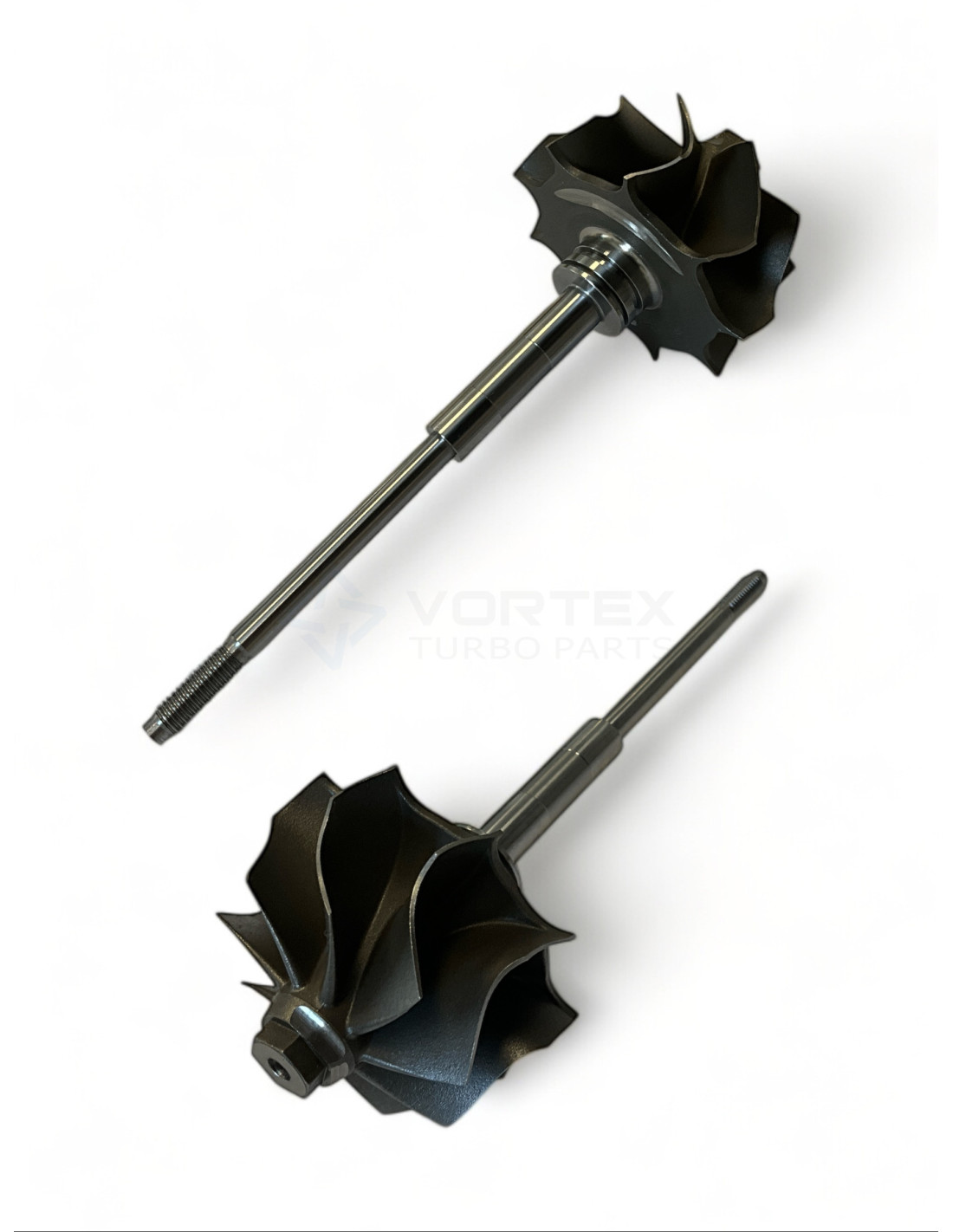

Shaft and wheel SW-G099
Shaft and wheel SW-G099

Shaft and wheel SW-G099

SW-G099
New
Last items in stock (4 Items)
€34.61
Tax included

SW-G099, TW-504

Shaft and wheel SW-G099 for turbos 702989-0003, 702989-0006, 755310-0001, 762931-0001, 762931-0002, 762931-0003, 762931-0004, 762931-0005, 762931-0006, 762931-0009.

See below for more info.



SW-G099 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G099

SW-G099 - Alternative numbers

KD (KODE): TW-504

SW-G099 - Compatibility table

Shaft and wheel SW-G099 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT2259S702989-00034891639
GarrettGT2259S702989-0006504094261
GarrettGT2259S755310-0001--
GarrettGT2256S762931-000132006047
GarrettGT2256S762931-0002320/06081
GarrettGT2256S762931-0003320/06079
GarrettGT2256S762931-0004320/06083
GarrettGT2256S762931-0005320/06084
GarrettGT2256S762931-0006320/06094
GarrettGT2256S762931-0009320/06160
GarrettGT2256S762931-0010320/06161, 32006161
GarrettGT2256S762931-0011320/06159
GarrettGT2256S762931-0015320/06157, 32006157

SW-G099 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 50.0

Exducer Diameter B (Exducer Diameter B): 42.5

Tip Height C (Tip Height C): 9.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 99.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

Data updated: 2022-12-19 18:04:15
