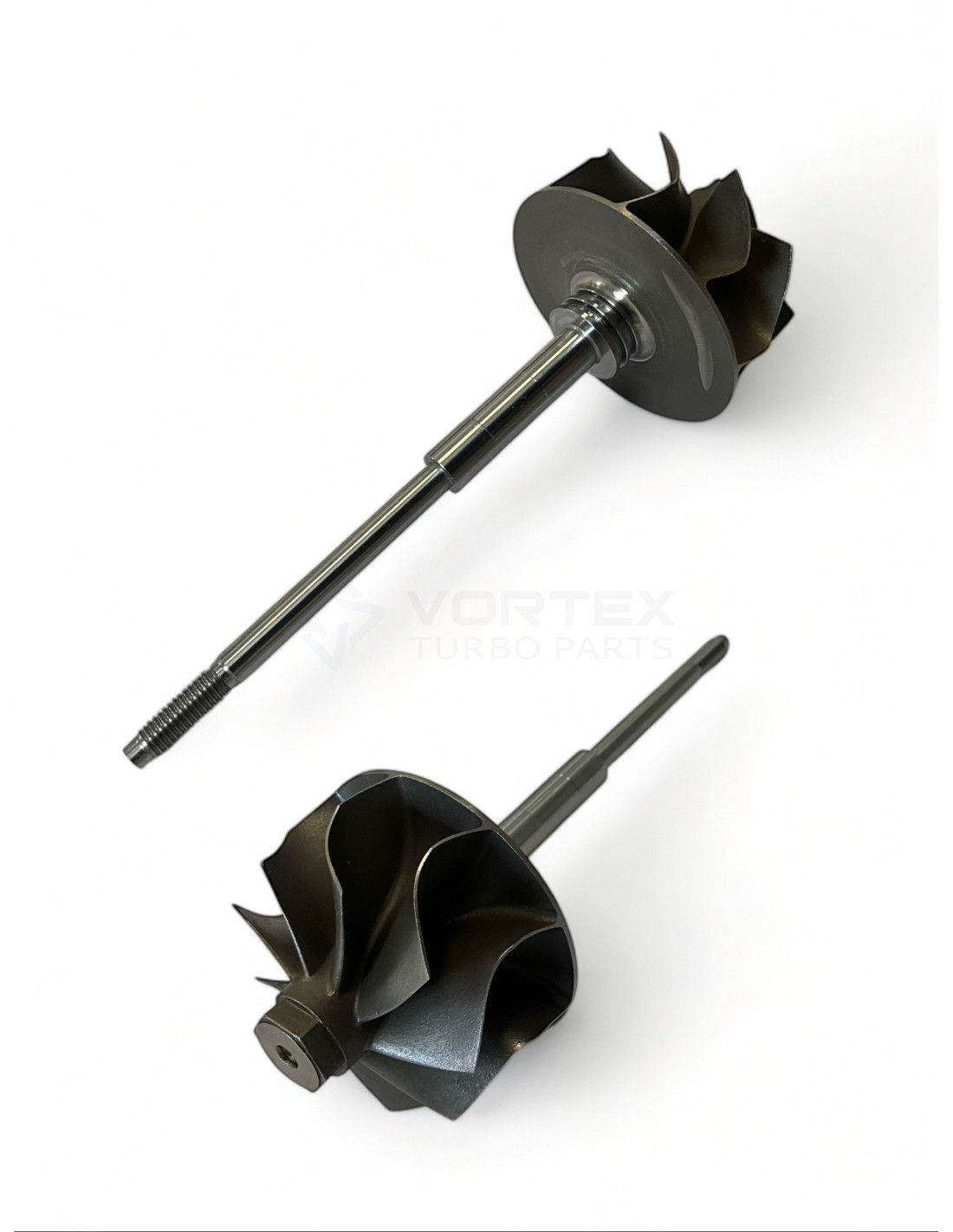

Shaft and wheel SW-G100
Shaft and wheel SW-G100

Shaft and wheel SW-G100

SW-G100
New
Out-of-Stock
€34.61
Tax included

Shaft and wheel SW-G100 for turbos 758351-0003, 758351-0005, 758351-0009, 758351-0013, 758351-0015, 758351-0017, 758351-0019, 758351-0020, 758351-0022, 758351-0024.




SW-G100 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G100

SW-G100 - Compatibility table

Shaft and wheel SW-G100 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGTB2260VK758351-000311657794260, 7794259F
GarrettGTB2260VK758351-000511657794260, 7794259H
GarrettGTB2260VK758351-000911657794260, 7794259K10
GarrettGTB2260VK758351-00137794259L
GarrettGTB2260VK758351-00157794259M12
GarrettGTB2260VK758351-00177794259N13
GarrettGTB2260VK758351-00197794259O14
GarrettGTB2260VK758351-00207794260O14
GarrettGTB2260VK758351-00227794260Q16
GarrettGTB2260VK758351-00247794260R17
GarrettGTB2260VK758352-00137796312P15
GarrettGTB2260VK758352-00177796312P15
GarrettGTB2260VK758352-00217796312P15
GarrettGTB2260VK758352-00227796312P15
GarrettGTB2260VK758352-00247796312P15
GarrettGTB2260VK758352-00267796312P15
GarrettGT2260758353-0005--
GarrettGT2260758353-0007--
GarrettGT2260758353-0009--
GarrettGT2260758353-0011--
GarrettGT2260758353-0013--
GarrettGT2260758353-0015--
GarrettGT2260758353-0017--
GarrettGT2260758353-0019--
GarrettGT2260758353-0020--
GarrettGT2260758353-0022--
GarrettGT2260758353-0024--
GarrettGTB2260V765985-0001--
GarrettGTB2260V765985-0003--
GarrettGTB2260V765985-0005--
GarrettGTB2260V765985-0006--
GarrettGTB2260V765985-0008--
GarrettGTB2260V765985-0010--
GarrettGTB2260V777853-000311657799759, 7799758F06
GarrettGTB2260VK777853-0005--
GarrettGT22777853-00067799759F06
GarrettGTB2260VK777853-0010--
GarrettGTB2260VK777853-00117799759G07
GarrettGTB2260VK777853-0013--
GarrettGTB2260VK780591-0002--
GarrettGTB2260VK780591-0003--
GarrettGTB2260VK780592-0002--
GarrettGTB2260VK780592-0003--
GarrettGTB2260VK785966-0002--
GarrettGTB2260VK785966-0003--
GarrettGTB2260VK785966-0004--
GarrettGTB2260VK786632-0002--
GarrettGTB2260VK786632-0003--
GarrettGTB2260VK786632-0004--
GarrettGTB2260V792460-0005--

SW-G100 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 50.0

Exducer Diameter B (Exducer Diameter B): 45.8

Tip Height C (Tip Height C): 10.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 99.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Model (Model): GT15-25

11657794260, 758351-0003, 7794259F, 11657794260, 758351-0005, 7794259H, 11657794260, 758351-0009, 7794259K10, 758351-0013, 7794259L, 758351-0015, 7794259M12, 758351-0017, 7794259N13, 758351-0019, 7794259O14, 758351-0020, 7794260O14, 758351-0022, 7794260Q16, 758351-0024, 7794260R17, 758352-0013, 7796312P15, 758352-0017, 7796312P15, 758352-0021, 7796312P15, 758352-0022, 7796312P15, 758352-0024, 7796312P15, 758352-0026, 7796312P15, 758353-0005, 758353-0007, 758353-0009, 758353-0011, 758353-0013, 758353-0015, 758353-0017, 758353-0019, 758353-0020, 758353-0022, 758353-0024, 765985-0001, 765985-0003, 765985-0005, 765985-0006, 765985-0008, 765985-0010, 11657799759, 777853-0003, 7799758F06, 777853-0005, 777853-0006, 7799759F06, 777853-0010, 777853-0011, 7799759G07, 777853-0013, 780591-0002, 780591-0003, 780592-0002, 780592-0003, 785966-0002, 785966-0003, 785966-0004, 786632-0002, 786632-0003, 786632-0004, 792460-0005

Data updated: 2024-10-11 17:17:49
