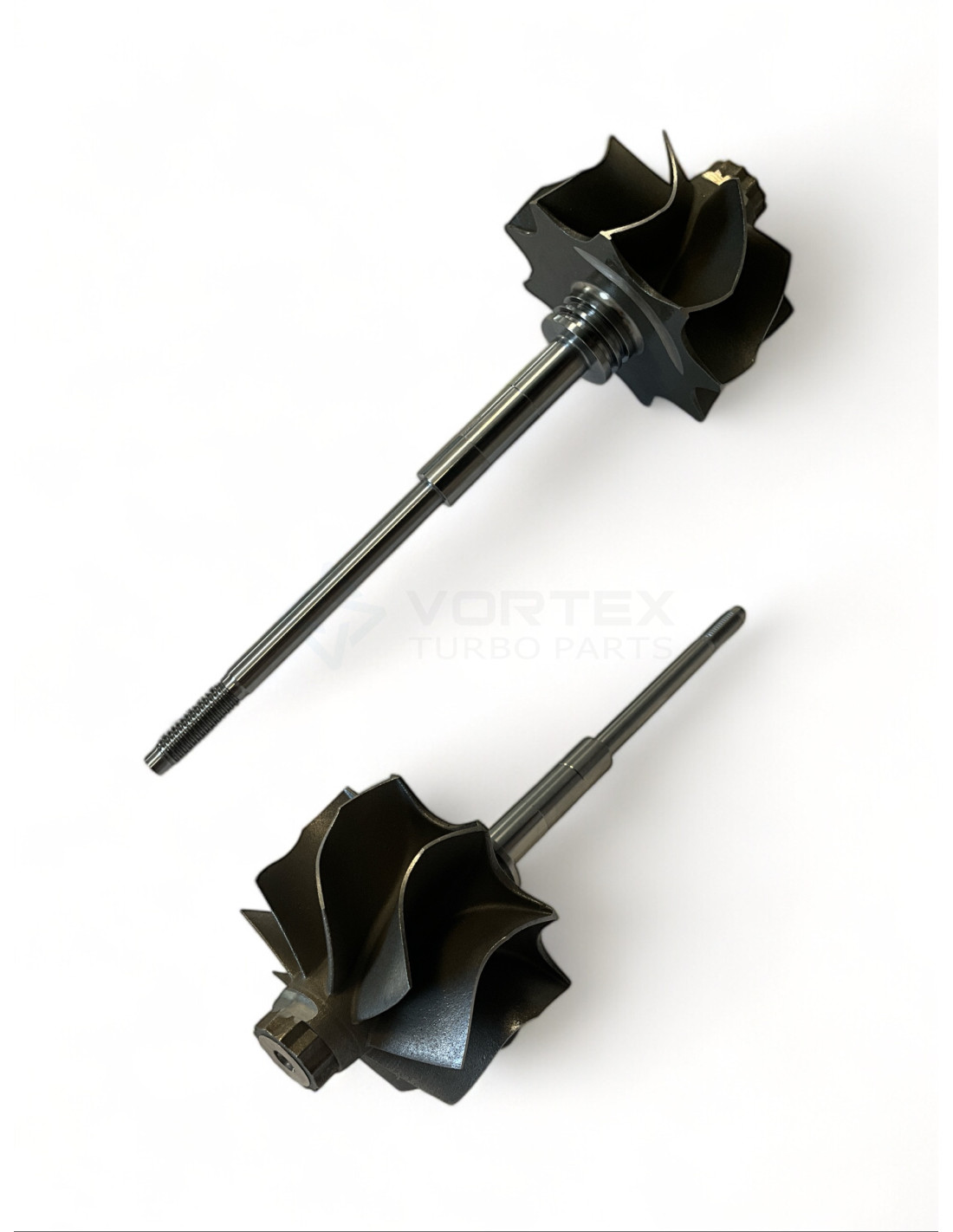

Shaft and wheel SW-G101
Shaft and wheel SW-G101

Shaft and wheel SW-G101

SW-G101
New
In Stock (25 Items)
€34.61
Tax included

Shaft and wheel SW-G101 for turbos 742730-0001, 742730-0003, 742730-0004, 742730-0007, 743115-0001, 743115-0003.



SW-G101 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G101

SW-G101 - Compatibility table

Shaft and wheel SW-G101 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT2260V742730-000111657790308, 7790306G
GarrettGT2260V742730-00037790308G
GarrettGT2260V742730-000411657790308, 7790306G
GarrettGT2260V742730-000711657790308, 7790306J
GarrettGTA2259VK743115-0001A6480960199
GarrettGTA2259VK743115-0003A6480960199

SW-G101 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 50.0

Exducer Diameter B (Exducer Diameter B): 46.0

Tip Height C (Tip Height C): 9.25

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 99.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Twin

Model (Model): GT15-25

11657790308, 742730-0001, 7790306G, 742730-0003, 7790308G, 11657790308, 742730-0004, 7790306G, 11657790308, 742730-0007, 7790306J, 743115-0001, A6480960199, 743115-0003, A6480960199

Data updated: 2024-09-16 19:10:00
