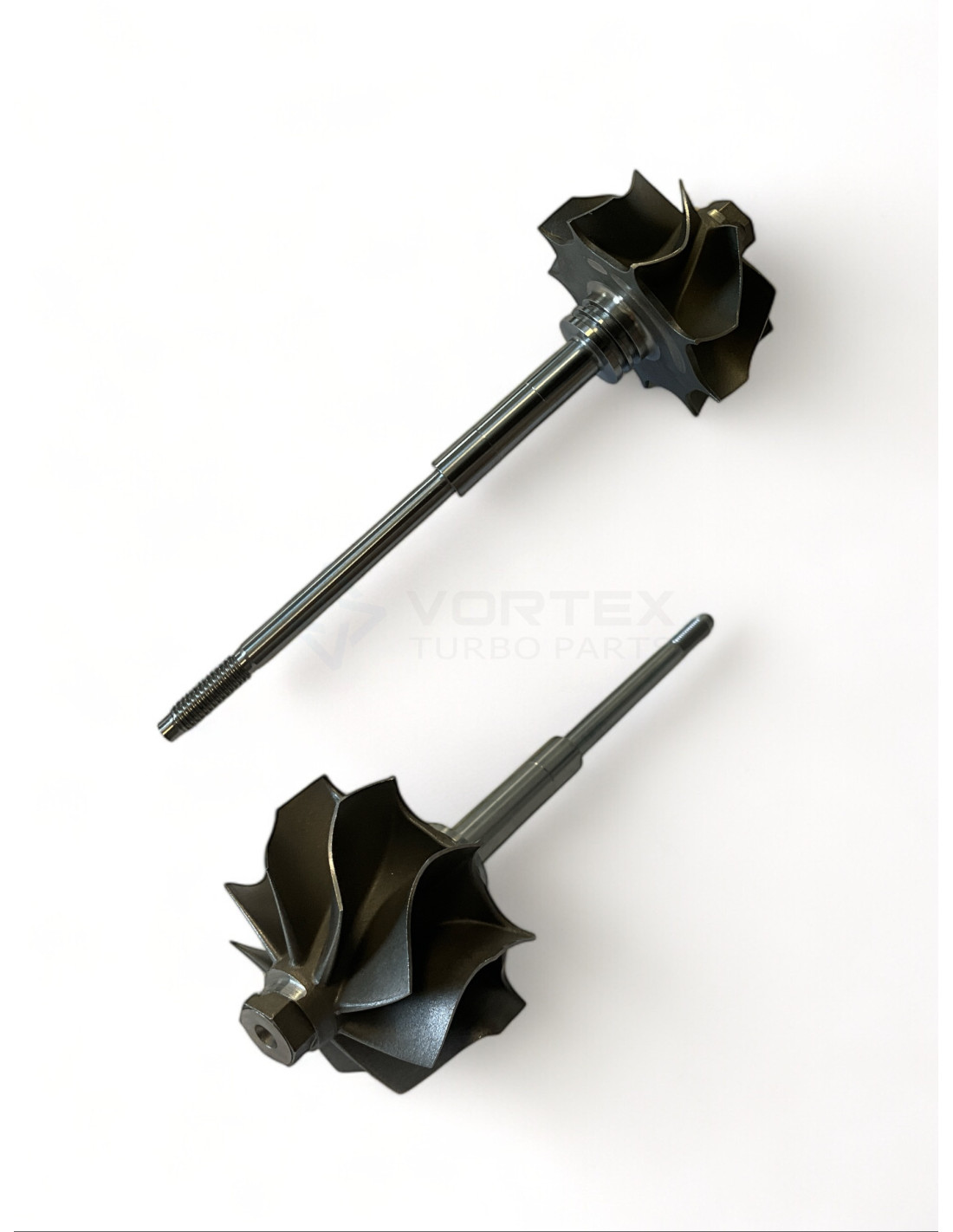

Shaft and wheel SW-G103
SW-G103
New
In Stock
(15 Items)
€33.03
Tax included
Shaft and wheel SW-G103 for turbos 750080-0001, 750080-0007, 750080-0013, 750080-0015, 750080-0016, 750080-0018, 750080-0019.
SW-G103 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-G103
SW-G103 - Compatibility table
Shaft and wheel SW-G103 - Compatible turbochargers | |||
---|---|---|---|
TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
Garrett | GTA2056V | 750080-0001 | 11657791758, 7791709E |
Garrett | GTA2056V | 750080-0007 | 11657791758, 7791709G |
Garrett | GTA2056V | 750080-0013 | 11657791758, 7791709I |
Garrett | GTA2056V | 750080-0015 | 7791758I |
Garrett | GTA2056V | 750080-0016 | 11657791758, 7791709K |
Garrett | GTA2056V | 750080-0018 | 7791758K |
Garrett | GTA2056V | 750080-0019 | 7791758K |
SW-G103 - Part Properties
Blades (Shaft blades count): 9
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 46.5
Exducer Diameter B (Exducer Diameter B): 40.0
Tip Height C (Tip Height C): 8.5
Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1
Shaft Length (mm) (Shaft Length (mm)): 99.0
Back (Back): Open
Piston Ring Type (Piston Ring Type): Twin
Model (Model): GT15-25
11657791758, 750080-0001, 7791709E, 11657791758, 750080-0007, 7791709G, 11657791758, 750080-0013, 7791709I, 750080-0015, 7791758I, 11657791758, 750080-0016, 7791709K, 750080-0018, 7791758K, 750080-0019, 7791758K
Data updated: 2023-11-09 14:33:53
