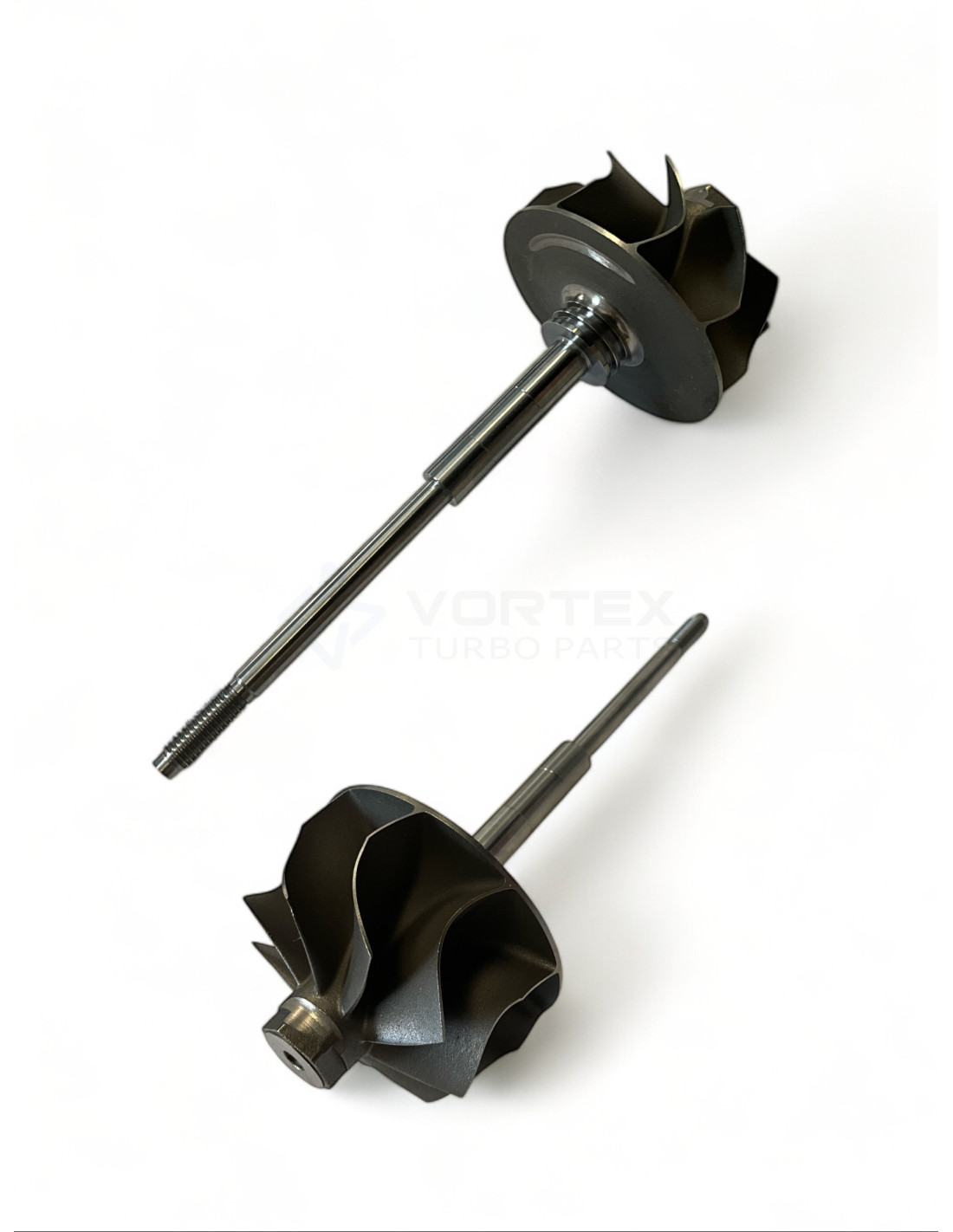

Shaft and wheel SW-G104
Shaft and wheel SW-G104

Shaft and wheel SW-G104

SW-G104
New
Last items in stock (3 Items)
€36.18
Tax included

Shaft and wheel SW-G104 for turbos 769705-0001, 769909-0009, 769909-0010, 776469-0004, 776470-0001, 776470-0003.



SW-G104 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G104

SW-G104 - Compatibility table

Shaft and wheel SW-G104 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGTB2260VK769705-0001--
GarrettGTB2260VK769909-0009059145722M, 6C1Q6K682EK
GarrettGTB2260VK769909-0010059145722M
GarrettGTB2260VK776469-0004--
GarrettGTB2260VK776470-0001059145722R
GarrettGTB2260VK776470-0003059145722R, 95512302500

SW-G104 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 50.0

Exducer Diameter B (Exducer Diameter B): 44.5

Tip Height C (Tip Height C): 10.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 99.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Model (Model): GT15-25

769705-0001, 059145722M, 6C1Q6K682EK, 769909-0009, 059145722M, 769909-0010, 776469-0004, 059145722R, 776470-0001, 059145722R, 776470-0003, 95512302500

Data updated: 2024-10-11 17:25:54
