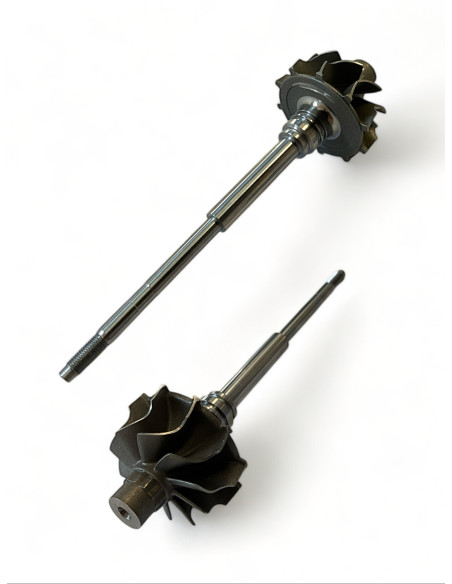

Shaft and wheel SW-BM002
Shaft and wheel SW-BM002

Shaft and wheel SW-BM002

SW-BM002
New
In Stock (11 Items)
€37.12
Tax included

Shaft and wheel SW-BM002 for turbos 030TC11001000, 04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E.



SW-BM002 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-BM002

SW-BM002 - Compatibility table

Shaft and wheel SW-BM002 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
BMTSBM003001030TC1100100004E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E
BMTSBM00300104E145703Q04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E
BMTSBM00300104E145704L04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E
BMTSBM00300104E145704N04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E
BMTSBM00300104E145704T04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E
BMTSBM00300104E145713B04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E
BMTSBM00300104E145713Q04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E
BMTSBM00300104E145721L04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E
BMTSBM00300104E145722E04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E

SW-BM002 - Part Properties

Blades (Shaft blades count): 10

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 33.6

Exducer Diameter B (Exducer Diameter B): 28.7

Tip Height C (Tip Height C): 4.4

Journal Bearing Diameter D (Journal Bearing Diameter D): 6.5

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.3

Shaft Length (mm) (Shaft Length (mm)): 90.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Twin

Rotation (Rotation): Reverse

Model (Model): BM65

030TC11001000, 030TC11001000, 030TC11001000, 030TC11001000, 030TC11001000, 030TC11001000, 030TC11001000, 030TC11001000, 030TC11001000, 030 TC 11001 000, 04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E, 030 TC 11001 000, 04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E, 030 TC 11001 000, 04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E, 030 TC 11001 000, 04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E, 030 TC 11001 000, 04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E, 030 TC 11001 000, 04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E, 030 TC 11001 000, 04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E, 030 TC 11001 000, 04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E, 030 TC 11001 000, 04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E

Data updated: 2024-10-30 15:47:52
